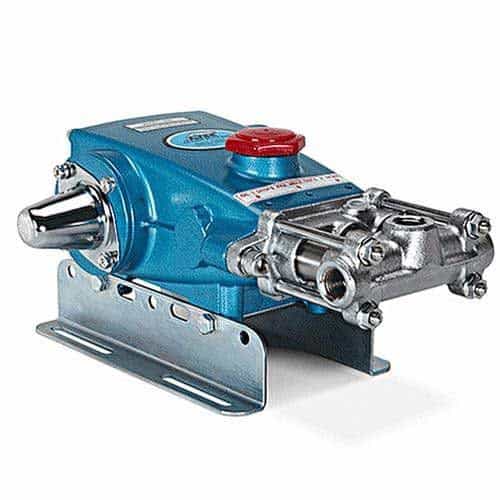

CAT Pumps 1010.0301 Piston Pump Blue Dot Seals and Flat Valves, 13 GPM, 700 PSI

Brand:
Mfr. Model #:
1010.0301
KR Part #:
PU1010.0301
Weight:
32.00 lbs
Usually Ships in 2 Weeks
MSRP
$3,108.00
Now Only!
$1,591.30
Chrome plated brass manifold triplex piston pump with stainless steel valve assemblies, cylinders, and sleeves. 700 PSI, 13 GPM. Brackets not included!



Technical Specifications

Bore: 28.5 millimeter
Crankcase Capacity: 40 ounce
Inlet Port: 1 inch
Shaft Diameter: 25 millimeter
Stroke: 28 millimeter
RPM: 900
Max Temperature: 160 degrees F
Max PSI: 700
Max GPM: 13

Product Description

Ten Frame Piston Pump with Blue Dot Seals

The CAT Pumps 1010 model is a three piston rod positive displacement, reciprocating piston pump. It has a chrome-plated brass manifold with stainless steel valve assemblies, cylinders, and sleeves. Its low RPM is designed for belt drive. The Uniflow design features a mechanically actuated inlet valve providing a continuous forward fluid flow and strong suction.

This version of the 1010 model pump boasts flat valves and Blue Dot seals.

Dimensions: 17.28 x 11.42   x 6.30"

Specifications:

  • Max Flow: 13 GPM
  • Minimum Pressure: 100 PSI
  • Maximum Pressure: 700 PSI
  • Maximum Temperature: 160° Fahrenheit
  • Inlet Port Size (1): 1" NPT
  • Discharge Port Size (3): 3/4" NPT
  • RPM: 900 RPM
  • Drive Type: Belt
  • Manifold Material: Brass
  • Shaft Diameter: .984"
  • Bore: 1.122"
  • Stroke: 1.102
  • Blue-dot Buna-N seals
  • Inlet Pressure Range: -8.5 to 40 PSI
  • Weight: 34.6 lbs.

Features:

  • Triplex Uniflow design provides continuous forward liquid flow for smooth operation.
  • Wetted cups and floating pistons are lubricated and cooled by pumped liquid for long cup life.
  • Mechanically actuated inlet valves give strong lift and easy prime.
  • Oil bath crankcase assures optimum lubrication.
  • 100% wetted seal design allows pumped liquid to cool and lubricate for longer life.
