4.75 GPM - 47 Series SS Pump

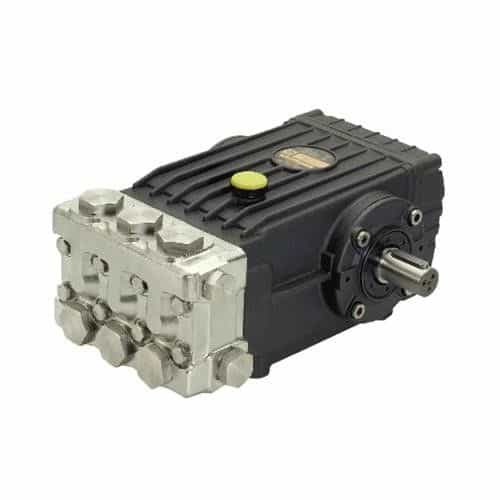

The General Pump TS2212SS is a triplex plunger pump that is engineered with the preferred frame in the pressure washing industry. It features a 316 stainless steel manifold for maximized corrosion resistance and strength. The solid ceramic plungers, continuously lubricated packings, and over-sized connecting rods are all used to construct the pump because of their durability. Special high tech packings help the pump function efficiently.

Specifications:

• Maximum Volume: 4.75 GPM
• Maximum Discharge Pressure: 2200 PSI
• Horsepower: 7.2 EBHP
• Maximum Pump Speed: 1750 RPM
• Max Inlet Pressure: 125 PSI
• Max Inlet Vacuum: 9 ft. Water / 7.9 in. Hg
• Plunger Bore: .866 in. / 22 mm
• Plunger Stroke: .472 in. / 12 mm
• Oil Capacity: 40.6 oz
• Max Fluid Temperature: 185° F
• Inlet Port Thread: 1/2-14 BSP-F
• Discharge Port Thread: 3/8-19 BSP-F
• Shaft Diameter: .945 in. / 24 mm
• Weight: 31 lbs.
• Dimensions: 12.25 in. x 9.2 in. x 6.9 in
• GTIN: 682491120292

Features:

• 316 Stainless Steel manifold for maximum corrosion resistance
• The preferred pump frame in the pressure cleaning industry
• Solid ceramic plungers with continuously lubricated packings
• Over-sized connecting rods for maximum life
• Features patent-pending “high tech” packings:
  • dynamic low-pressure seal retainer
  • superior low-pressure seal
  • innovative intermediate ring
  • superior high-pressure seal
