Arimitsu 516L Triplex Plunger Pump, 4.0 GPM, 2300 PSI, Left Shaft
Brand:
Mfr. Model #:
1.00121-027863 / A8015
KR Part #:
ARM516L
Weight:
22.60 lbs
Availability:
4
Out of stock - Pre-Order Now!

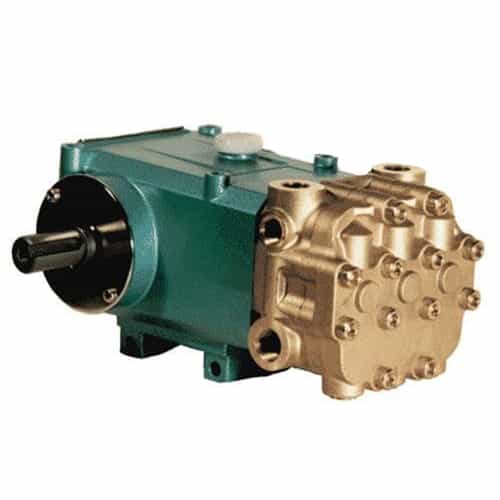

Durable triplex pump provides smooth liquid flow. Liquid-cooled, low-drag seals provide long life and improved suction. Maximum flow of 4.0 GPM, with pressures up to 2300 PSI. Note: This is a left-side shaft model, right side shaft shown.
Technical Specifications
RPM: 950
Max GPM: 4
Max PSI: 2300
Inlet Port: 1/2 inch
Max Temperature: 175 degrees F
Shaft Diameter: 22 millimeter
Crankcase Capacity: 19 ounce
Product Description
Arimitsu Triplex Plunger Pump 516L
The Arimitsu 516L plunger pump provides smooth liquid flow thanks to the superior forged brass manifold design. Liquid-cooled, low-drag seals provide long life and improved suction. Oversized crankshaft bearings and a balanced flow crankcase design with precision machining provide for quiet operation. Precision ground ceramic plungers offer increased thermal shock resistance. Pump designed for easy maintenance, with a fluid end that can be accessed without entering crankcase and easy-access seal case and valve assembles. Great for truck washes and self-serve bays.
Features
- Zero-clearance exclusionary seals for crankcase protection
- Stainless steel valves with polished valve seats and hardened seating surfaces
- Proprietary seal blend for maximum life span
- No special tools needed for repair or maintenance
- Left side shaft
- 310/5CP replacement rails available
Specifications
- Maximum Flow: 4.0 GPM
- Maximum Pressure: 1500 PSI
- Maximum Liquid Temperature: 175°F
- RPM: 950
- Inlet Port: 1.2"
- Outlet Port: 3/8"
