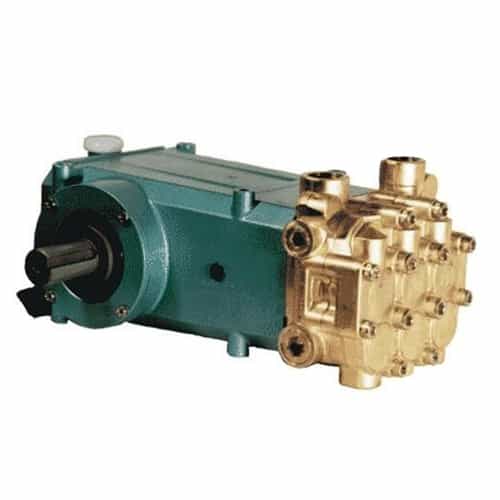

Arimitsu 709 Triplex Plunger Pump, 15 GPM, 1100PSI, Left Shaft

Mfr. Model #:
1.00122-036679 / A3017
KR Part #:
33.00 lbs
Usually Ships in 4 Weeks
Now Only!

Proven plunger pumps featuring a diecast crankcase and oversized crankshaft for long life and quiet operation. Liquid-cooled, low drag seal provide long life and improved suction.


Technical Specifications

RPM: 950
Max PSI: 1100
Max GPM: 15
Crankcase Capacity: 37 ounce
Max Temperature: 175 degrees F
Shaft Diameter: 28 millimeter
Inlet Port: 3/4 inch

Product Description

Arimatsu Pump, Left Hand Shaft

Compact and durable, the Arimatsu 709 is a standard pump on the Mark VII IBA system, and is an excellent all-around pump for car washing and pressure washing needs. Machined manifold and triplex design provides smooth liquid flow. Balanced flow crankcase design and machining ensures uniform lubrication and quiet operation. Great corrosion resistance and above-average temperature capabilities.

Dimensions: 12.7" X 6.1" X 5.8"


  • Triplex Plunger Pump
  • Solid shaft, left side
  • 100% Stainless steel valve assemblies for improved temperature and chemical handling abilities
  • Precision ground ceramic plungers for long life and increased thermal shock resistance
  • Forged brass manifolds
  • Proprietary seal blend for maximized life span and increased maintenance intervals
  • Easy-access seal case and fluid end that can be serviced without entering crankcase provide easier maintenance and repair with no need for special tools


  • Max GPM: 15 GPM
  • Max PSI: 1100 PSI
  • Max Temp: 175°F
  • Inlet Port: 3/4" NPTF
  • Outlet Port: (1) 1/2" NPTF and (1) 3/4" NPTF
