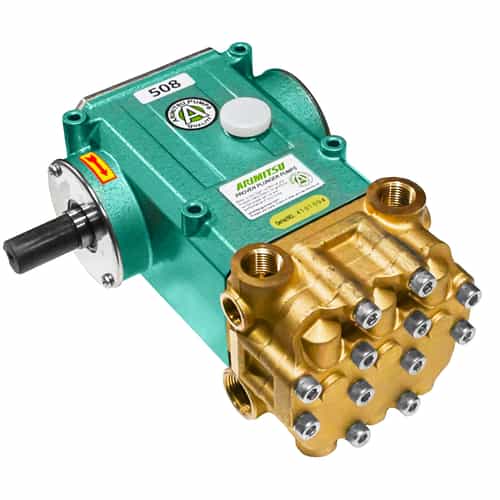

Arimitsu 508L Forged Brass Triplex Plunger Pump - Left Shaft 1200 PSI, 8 GPM, 950 RPM
Brand:
Mfr. Model #:
1.00121-027677 / A8010
KR Part #:
ARM508L
Weight:
21.00 lbs
This Arimitsu plunger pump has a balanced flow crankcase and a forged brass manifold that provides quiet, smooth operation. The 509 model from the 5 series is an ideal triplex plunger pump option for car wash applications where efficiency, durability, corrosion resistance and long lifespan are crucial. This pump has a 22mm shaft and handles a maximum pressure of 1200 PSI. This is the left shaft version of the 508 model (508L), but a right shaft version (508R) is available.
Technical Specifications
RPM: 950
Crankcase Capacity: 19 ounce
Inlet Port: 3/4 inch
Max GPM: 8
Max PSI: 1200
Shaft Diameter: 22 millimeter
Outlet Port: 1/2 inch
Outlet Port: 3/8 inch
Product Description
1200 PSI Arimitsu Plunger Pump with Left Shaft
The Arimitsu 508L Plunger Pump is a left-handed shaft triplex pump ideal for dual gun units in bay and prep station car wash applications. It features a balanced crankcase that offers incredibly smooth and quiet operation. Its forged brass manifold is machined to deliver consistent liquid flow and excellent corrosion resistance. Additionally, it has valve assemblies constructed with stainless steel to handle high temperatures and harsh chemicals. Ceramic plungers are made with a proprietary blend of materials to provide increased thermal shock resistance and longer life. It handles a maximum pressure of 1200 PSI, flow rate of 8 GPM, and speed of 950 RPM.
508L Plunger Pump Specifications
- Flow: 8 GPM
- Pressure: 1200 PSI
- RPM: 950
- Inlet: Pressure: 70 PSI
- Inlet: 3/4"
- Outlet: 1/2" & 3/8"
- Crankcase Capacity: 19 oz.
- Shaft Diameter: 22 mm
- Max Liquid Temperature: 175°F
- Shaft Location: Left
- Weight: 21 lbs.
Features
- Triplex pumps provide smooth liquid flow
- Liquid cooled, low drag seals provide long life, improved suction, higher efficiency and longer dry running without damage
- Balanced flow crankcase design and precision machining ensures uniform lubrication and quiet operation
- Manifold is designed and machined to guarantee superior fluid flow
- Zero-clearance exclusionary seals protect crankcase
- Ideal for dual gun prep
- Compact performance
- Quiet, Compact, Long-lasting
Quality
- 100% stainless steel valve assemblies deliver greater temperature and chemical handling abilities
- Precision ground ceramic plungers utilize a proprietary material blend for long life and increased thermal shock resistance
- Forged brass manifolds offer strength and corrosion resistance
- Proprietary, proven seal blend maximizes life and increases maintenance intervals
- Oversized crankshaft bearings for long life and quiet operation
Maintenance
- No special tools required for repair or maintenance
- Fluid end is easily serviced without entering crankcase
- Easy access seal case and valve assemblies
- Seals require no adjustment
Product Reviews
Frequently Asked Questions
Question:this page both says 8 and 10gpm which is correct and also will a 7.5hp elec motor operate this
-
tim
(01/22/2021)
Response:The pump is rated for 8 gpm @ 950 RPM, and 10 gpm @ 1200 RPM. Yes a 7.5hp motor would work.
Question:my power washer is shuttering i have changed the unloader valve and it is no better could it be the Arimitsu 508 pump causing problem I checked washer and rings they seem to be ok
-
John
(09/16/2020)
Response:Yes, you could pull the valves from the pump head and clean out any dirt/debris. Also check your pump inlet water supply to make sure you are not starving the pump for water.
