Air Powered Pump

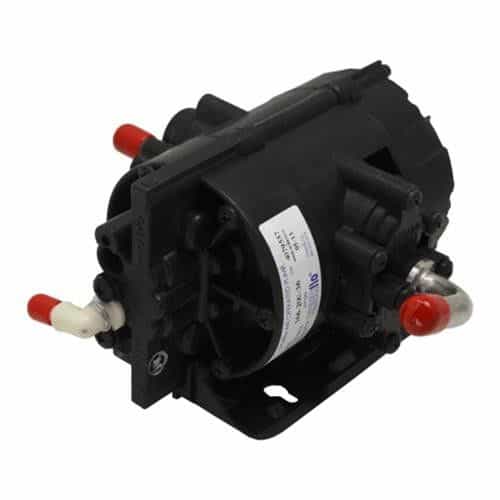

Shurflo's 166-200-36 166 Series air operated diaphragm pump that utilizes a twin chamber double diaphragm design. The pump's body is constructed with polypropylene to enable operation in areas where the pump is exposed to corrosive chemicals. Handles pressures at a maximum of 60 PSI. Pump is made for chemical transfer, injection and spraying applications.

Specifications:

• Design: Twin Chamber Double Diaphragm

• Model Number/Fluid Chamber Materials: 166-200 -36 Viton

• Materials Of Construction: Polypropylene, Nylon, 316 Stainless Steel, Buna within air passages

• Power Source: CO2, Nitrogen, or Compressed Filtered Air

• Operating Pressure (Static): 60 psi. [4.1 bar] MAX. / 20 psi. [1 bar] MIN.

• Displacement: .0195 gal. per cycle [74cc]

• Flow Rate (Continuous):  .6 gal. per min. maximum [2.2 L]

• Gas Consumption Rate (Fluid Viscosity 22 Centipoise): .48 CFM @ 60 psi consumed when pumping at .46 GPM

• Temperature Limits: 34° _ 120°F [1.1°_49°C]

• Suction Lift (Wet): 25 in/Hg. [85 kPa] (not intended for dry operation)

• Valve Passage: .025 [.6mm] soft, round particulates max.

• Dimensions: 6.3"H x 5.9"W x 3.8"D [160 x 150 x 97 mm]

• Weight: 2 lbs. [.9 kgs]

• Standard Fittings: 3/8" [10mm] Barb, stainless steel, 90° configuration


Features:

• 2-Chamber Dual Diaphragm

• Positive Displacement

• On-Demand Operation

• Chemically Resistant Polypropylene Body

• 30 to 60 PSI [2.1- 4.1 bar]

• 0.6 GPM Maximum Flow
