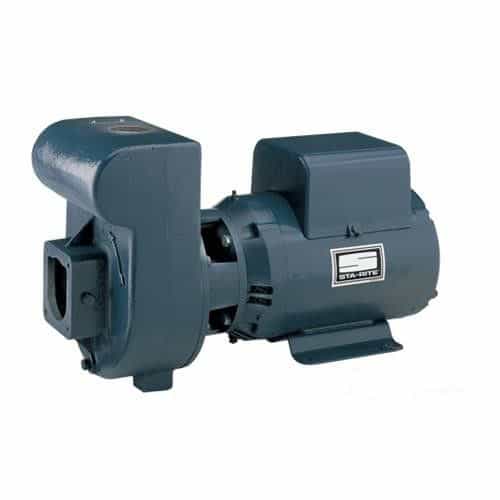

Sta-Rite DHE-50L Self-Priming High Head Centrifugal Pump, 1HP, 1PH, 60 GPM

Brand:
Mfr. Model #:
DHE-50L
KR Part #:
DHE
Weight:
65.00 lbs
Call For Availability
MSRP
$1,725.00
Now Only!
$874.00
High head self-priming pump features a heavy duty motor and rugged construction. Built for easy service and air volume control tapping, with drain port for easy winterizing and wear parts accessible without disturbing piping or mounting. 1-horsepower pump with single-phase motor, pumping up to 60 GPM.



Technical Specifications

Horsepower: 1.0
Max PSI: 115
Max GPM: 60
Voltage AC: 115/230
Phase: Single
Max Temperature: 140 degrees F
RPM: 3450

Product Description

Sta-Rite Self-Priming High Head Centrifugal Pump

The Sta-Rite DHE-50L features a heavy duty motor and rugged construction. Built for easy service and air volume control tapping, with drain port for easy winterizing and wear parts accessible without disturbing piping or mounting. Fast-priming for easy use, designed for continuous operation.  One-horsepower pump with single-phase motor, pumping up to 60 GPM. Perfect for water transfer and supply, irrigation, jetting, and other car wash and agricultural applications.

Features

  • Cast Iron pump body
  • Noryl Impeller
  • 416 stainless steel shaft
  • Capacitor start, will not cause electrical interference with TV or other appliances.

Specifications

  • Horsepower: 1 HP
  • Max Flow: 60 GPM
  • Max PSI: 115 PSI
  • Speed: 3450 RPM
  • Voltage: 115/230
  • Phase: Three
  • Inlet Port: 1.5" FNPT
  • Outlet Port: 1.5" FNPT
