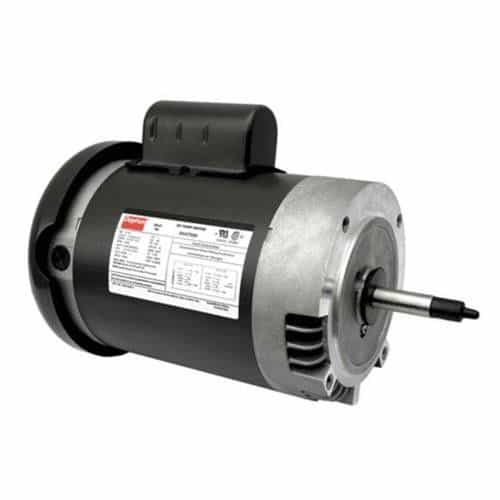

Dayton 5K475 Motor - 1 PH, 1.5 HP, 3450 RPM
Brand:
Mfr. Model #:
5K475
KR Part #:
5K475
Weight:
35.00 lbs
A general purpose, 1.5 horsepower motor with an open drip-proof enclosure. This single phase motor is compatible with 115/208-230V AC electric currents. It handles a maximum speed of 3450 RPM.
Product Description
3450 RPM - Open Drip-proof Motor
Designed to connect with the shaft of jet pumps, the Dayton 5K475 is a single phase capacitor-start motor that generates 1.5 horsepower of energy to power equipment at your car wash. It handles a maximum speed of 3450 RPM. The motor is compatible with 115/208-230V AC electrical connections. Open drip-proof design with a 56J frame.
5K475 Specifications:
- Body Dia: 6.5 in
- Frame: 56J
- Full Load Amps: 18.2/9.2-9.1
- HP: 1-1/2
- Hz: 60
- Includes: Dripcover Kit for Vertical Mounting, Water Slinger
- Ins. Class: B
- Max. Ambient Temperature: 40 °C
- Motor Application: Pump
- Motor Bearings: Ball
- Motor Design: Capacitor-Start
- Motor Enclosure Design: Open Drip-proof
- Motor Mounting Position: Horizontal, Vertical Shaft Down
- Motor Mounting Type: Face
- Motor Service Factor: 1.3
- Motor Shaft Design: Threaded
- Motor Shaft Rotation: CCWSE
- Motor Sub Application: Jet Pump
- Motor Thermal Protection: Auto
- Nameplate RPM: 3,450
- Nominal Efficiency: 72.9 %
- Phase: Single
- Shaft Diameter: 5/8 in
- Shaft Length: 2-5/8 in
- Standards: CSA Certified (258501)
- UL: Recognized (E37403)
- Voltage: 115/208-230V A
