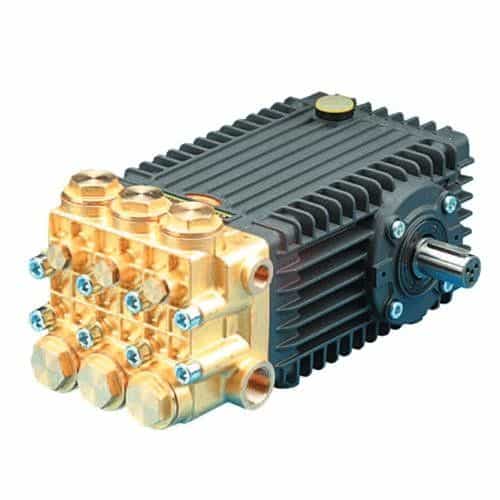

General Pump TSF2019 High Flow Triplex Pump, 7.6 GPM, 4000 PSI, Right Shaft
Brand:
Mfr. Model #:
TSF2019
KR Part #:
GPTSF2019
Weight:
40.70 lbs
GTIN:
682491114703
Availability:
1
The preferred pump frame in the pressure cleaning industry. Features a forged brass manifold, large-capacity aluminum oil bath crankcase, and solid ceramic plungers with continuously lubricated packings. Up to 7.6 GPM at pressures up to 4000 PSI.
Technical Specifications
Bore: 20 millimeter
Crankcase Capacity: 40.6
Horsepower: 20.8
Inlet Port: 3/4 inch
Max GPM: 7.6
Max PSI: 4000
Max Temperature: 165 degrees F
RPM: 1750
Shaft Diameter: 24 millimeter
Stroke: 19 millimeter
Product Description
General Pump TSF 66 Series Pump with Right Shaft
The General Pump TSF2019 features one of the leading pump frames in the pressure cleaning industry. A large-capacity fully anodized crankcase and new plunger design with improved thermal shock resistance provide for durability and reliability. Produces consistent high flow at mid-range pressures.
Dimensions: 14.94" x 9.78" x 6.99"
Features
- New valve cap for improved hydrostatic performance
- Oversized roller bearings
- Innovative new seal design for extended seal life
- Right side crankshaft
Specifications
- Maximum Flow: 7.6 GPM
- Maximum Pressure: 4000 PSI
- RPM: 1750 RPM
- Max Temperature: 165° F
- Inlet Port: 3/4"-14 BSP-F
- Discharge Port: 3/8"-19 BSP-F
