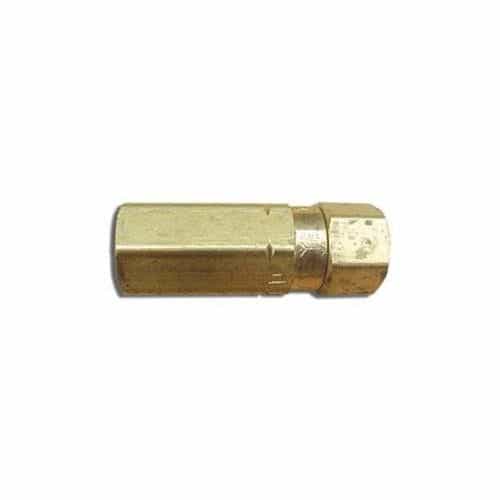

SMC 6960290 Ball Check Valve, 1/4 In. FxF, Viton O-Ring

Brand:
Mfr. Model #:
6960290
KR Part #:
CV0030
Weight:
0.36 lbs
In Stock
MSRP
$36.49
Now Only!
$18.25
Brass ball check valve with stainless steel spring and Viton seals. 1/4 inch NPT female connections. Can operate in vertical or horizontal orientation.



Technical Specifications

Max PSI: 3000
Max Temperature: 375 degrees F
Inlet Port: 1/4 inch
Outlet Port: 1/4 inch

Product Description

Brass 1/4" Check Valve

This brass SMC check valve provides a reliable, tight seal. It features an all brass body that can withstand pressures up to 3000 PSI, and comes with with a Viton O-ring. Brass check valves eliminate back flow and help maintain constant back-pressure in car wash systems, preventing system-damaging water hammers and more.

  • Brass body
  • Stainless steel spring
  • Viton O-ring
  • 1/4" female ends
  • Maximum temperature: 375° F
  • Maximum pressure: 3000 PSI
  • Cracking pressure: 1 PSI
