General Pump TT2035EBFL Series 51 Triplex Pump, 3.5 GPM, 2000 PSI, Left Shaft
Brand:
Mfr. Model #:
TT2035EBFL
KR Part #:
GPTT2035EBFL
Weight:
11.50 lbs

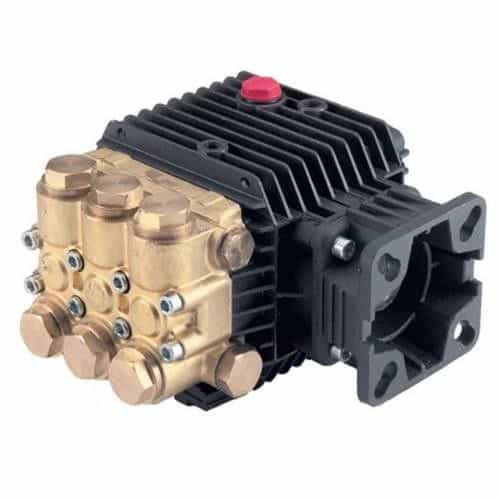

Triplex plunger pump with brass manifold, aluminum crankcase, and three solid ceramic plungers. Flanged for mounting to NEMA 56C electric motor. Pressure up to 2000 PSI, flow up to 2.1 GPM, 3400 RPM. Note: picture shows right shaft, but this is a left hand pump.
Technical Specifications
Bore: 15 millimeter
Crankcase Capacity: 11.2 ounce
Inlet Port: 3/8 inch
Max GPM: 3.5
Max PSI: 1800
Max Temperature: 165 degrees F
RPM: 3400
Shaft Diameter: 16 millimeter
Stroke: 8 millimeter
Product Description
51 Series Pump with Electric Engine Flange, Left Shaft
The General Pump TT2035EBFL Pump is a triplex plunger pump that includes a flange for electric NEMA 56C motors with a maximum speed of 3400 RPM. Has a maximum flow rate of 3.5 GPM and a maximum pressure of 2000 PSI. Features a die-cast aluminum crankcase, a forged brass manifold, and solid ceramic plungers. A great choice for high-pressure spraying, misting, and cleaning applications!
Dimensions: 7.0" x 7.2" x 5.5"
Features include:
- Forged brass manifold with exclusive lifetime warranty
- Die cast, anodized aluminum, oil-bath crankcase
- Solid ceramic plungers with continuously lubricated packings
- The original Interpump unitized, stainless steel, K01 inlet and outlet valves
- Ideal for all general cleaning applications
Specifications:
- Maximum Volume: 3.5 GPM
- Maximum Discharge Pressure: 2000 PSI
- Maximum Pump Speed: 3400 RPM
- Maximum Inlet Pressure: 125 PSI
- Maximum Inlet Vacuum: 3 ft. water (2.6 in. Hg)
- Bore: .591 in. / 15 mm
- Stroke: .315 / 8
- Crankcase Oil Capacity: 11.2 oz.
- Maximum Fluid Temperature: 165 F
- Inlet Port Thread: 3/8-19 BSPP-F
- Discharge Port Thread: 1/4-19 BSPP-F
- Shaft: 3/4 in./19 mm, Hollow, Left Side
- Weight: 11.5 lbs.
- Dimensions: 7.0" x 7.2" x 5.5"
