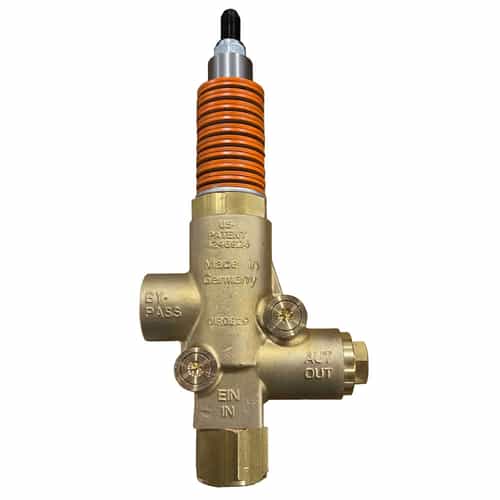

Giant Regulator 26.4GPM, 4060PSI
Brand:
Mfr. Model #:
22973CR
KR Part #:
PU22973C
Weight:
0.75 lbs
Pressure-actuated unloader that helps to regulate system flow. Brass body, with 3/4" FNPT inlet and outlet. Flow range of 2.1 GPM to 26.4 GPM.
Technical Specifications
Min PSI: 580
Max PSI: 4060
Max Temperature: 160 degrees F
Max GPM: 26.4
Product Description
Brass Unloader that Regulates System Flow
The Giant 22973C pressure-actuated unloader is designed for any pump that fits within the flow and pressure range of the unloader. The unloader regulates the flow in the system and maintains system pressure via an adjustable nut that controls the amount of tension on a pressure spring. When no flow is going out the outlet port, all flow is diverted to the bypass port at virtually no pressure. The 22973C is capable of handling one or more shut-off guns and should be run with no bypass (if the full flow from the pump is going through the unloader). It actuates at around 10% above the system pressure.
Specifications:
- Maximum flow: 26.4 GPM
- Minimum flow: 2.1 GPM
- Maximum pressure: 580-4060 PSI
- Maximum temperature: 160°F
