Amplifier with Timer

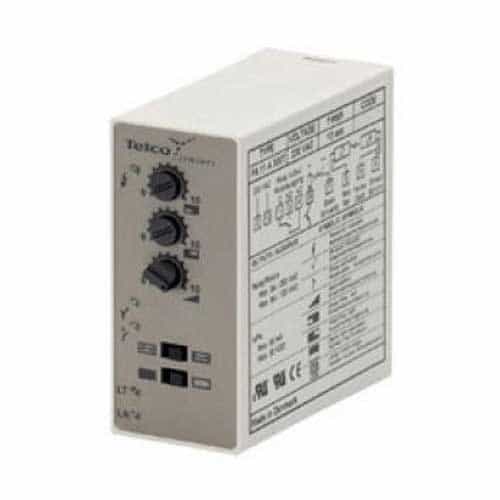

Telco PA11 photoelectric amplifier series is a perfect companion for remote transmitters and receivers (series 100, 110, 120). Features manual sensitivity adjustment with integral potentiometers via the front panel. Output is also adjustable. with relay and NPN output

Size: 35 mm x 76 mm x 91 mm

Features:

• 115V AC power supply
• Relay, NPN outputs
• Connection: 11-pole DIN
• On/Off Response Time: 35 ms/ 35ms
• Sealing Class: IP 40

Specifications:

• Power Supply: 115V AC
• Sensors: 1
• Hysteresis: 45%
• Delay (On/Off): 0-10 sec (adjustable)
• Maximum Current: 3.5 VA
• Frequency: 20 Hz
• Voltage (tolerance): +/- 15%
• Housing: Noryl material
• Maximum Temperature: 50° C
• Weight: 1 lb.
