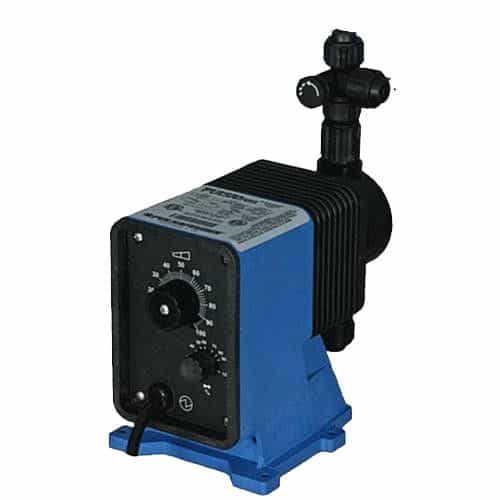

Pulsafeeder PULSAtron Series A Plus 115V Metering Pump - 24 GPD, 100 PSI

Brand:
Mfr. Model #:
LB04SA-PVC1-XXX
KR Part #:
PFLB04
Weight:
8.60 lbs
Availability:
2
Low Stock Warning
MSRP
$609.12
Now Only!
$380.70
Thermoplastic housing metered diaphragm pump. 115 volt AC, 24 GPD, 100 PSI.



Technical Specifications

Voltage AC: 115
Max PSI: 100
Max GPM: .017 (1 GPH)

Product Description

Indoor/Outdoor Chemical Metering Pump

The Pulsafeeder LB04SA-PVC1-XXX pump is from the PULSAtron Series A Plus line of pumps. These positive displacement, diaphragm style pumps have an adjustable output volume from zero to maximum capacity.

PULSAtron Series A Plus pumps feature guided check valves with precise seating and excellent suction characteristics. These metering pumps have a reliable timing circuit that is almost totally unaffected by temperature, electromagnetic interference, and other electrical disruptions. PULSAtron Series A Plus models have a high-quality solenoid valve and PBT thermoplastic enclosure that help dissipate heat. That allows these pumps to consistently meet their pressure and capacity expectations, even through extended use. They're also water-resistant. All of these performance details mean that PULSAtron A Plus Series are ideal for demanding applications like car washes, outdoor use, and manufacturing environments.

Specifications:

  • Maximum Flow: 24 GPD (1 GPH)
  • Maximum Pressure: 100 PSI
  • Power Supply: 115 VAC, 50/60 Hz
  • Maximum Viscosity: 1000 cps
  • Maximum Strokes/Minute: 125
  • Flow Control: Dual Manual Control
  • Turn Down Ratio: 100:1
  • Head/Fittings: GFPPL
  • Valve Balls: Ceramic
  • Diaphragm: PTFE-faced CSPE
  • Valve/Seat/O-ring: Viton
  • Connections: 3/8" Tubing

Additional Components Included:

  • Weighted foot valve/strainer assembly
  • Bleed valve assembly
  • 1/2" NPT male injection fitting/back pressure check valve assembly
  • 4' suction tubing
  • 4' bleed/return tubing
  • 8' discharge tubing

PULSAtron Series A Plus Features:

  • Manual Control by on-line adjustable stroke rate and stroke length
  • Highly reliable timing circuit
  • Circuit protection against voltage and current upsets
  • Solenoid protection by thermal overload with auto-reset
  • Water resistant for outdoor and wet applications
  • Internally dampened to reduce noise
  • Guided ball check valve system reduces back flow and enhance outstanding priming characteristics.
  • Few moving parts
  • Capable of being mounted to the wall
  • Safe & easy priming with durable leak-free bleed valve assembly (standard)
  • Reliable metering performance
  • Rated "hot" for continuous duty
  • Leak-free, sealless, liquid end
  • Easy adjustment using readily accessible dial knobs; one for changing stroke length and the other for changing stroke frequency
  • Valve seat and seal ring are renewable by replacing the cartridge valve assembly
