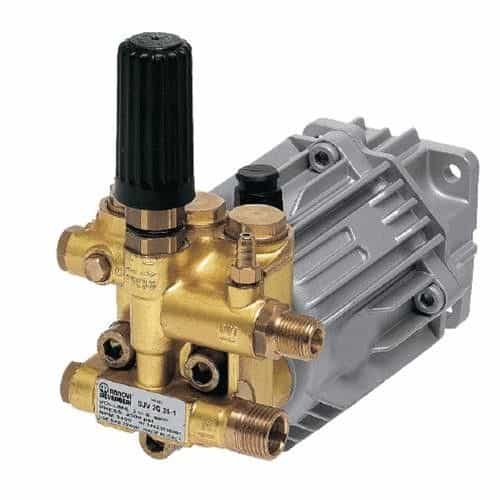

AR North America SJV3G27D-F7 Gas Powered Plunger Pump - 3 GPM, 2700 PSI
Brand:
Mfr. Model #:
SJV3G27D-F7
KR Part #:
ARSJV3G27D-F7
Weight:
0.02 lbs
Usually Ships in 2 Weeks
A direct driven gas powered plunger pump for applications requiring hot water. Equipped with a hollow shaft that measure 3/4" in diameter. It produces a flow rate of 3 GPM.
Technical Specifications
Bore: 15 millimeter
Stroke: 6.8 millimeter
Shaft Diameter: 3/4 inch
RPM: 3400
Max Temperature: 140 degrees F
Max PSI: 2700
Max GPM: 3
Inlet Port: 1/2 inch
Crankcase Capacity: 4.5 ounce
Product Description
3 GPM - Gas Driven Hollow Shaft Plunger Pump
AR North America SJV3G27D-F7 is a gas driven plunger pump designed for direct drive applications. It has a 3/4" D style hollow shaft that couples with gas engines. The shaft is engineered to handle a maximum speed of 3400 RPM. Materials used to construct the seals and other components handle a maxiumum fluid temperatures of 140 degrees Fahrenheit for applications requiring hot water. Pump produces a maximum flow rate of 3 GPM and a handles a maximum pressure of 2700 PSI.
Specifications:
- Max GPM: 3
- Max L/Min: 11.4
- Max PSI: 2700
- MaxBar: 186
- Power EBHP: 5.2
- Bore Dia mm: 15
- Stroke mm: 6.8
- Inlet: 1/2" M
- Outlet: 3/8" M
- Max Temp: 140° F
- Oil Capacity (oz): 4.5
- Weight: 11
- RPM: 3400
- Shaft Size: 3/4"
- Shaft Version: D
- Shaft Type: Hollow
