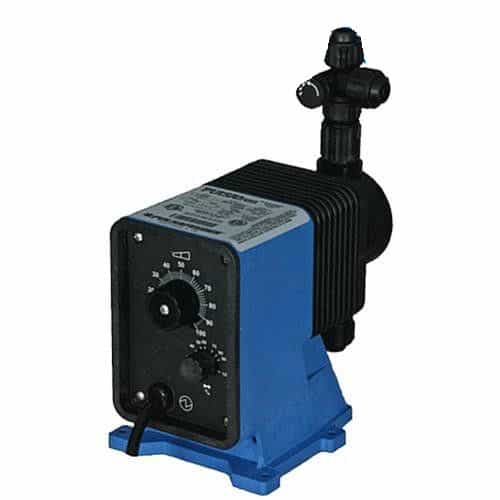

Series C Plus Metering Pump

The PULSAtron Series C Plus has guided check valves, with their state-of-the-art seat and ball designs, provide precise seating, excellent priming and suction life characteristics. The timing circuit is highly reliable and, by design, virtually unaffected by temperature, EMI and other electrical disturbances The high quality solenoid and special enclosure effectively dissipates heat. Agency Approved and water resistant for demanding outdoor and indoor applications.

Adjustment is by means of readily accessible dial knobs, one for changing stroke length and the other for changing stroke frequency. Both knobs are located opposite the liquid handling end. Automatic control via external pacing inputs. Auto-Manual switch.

The pump drive is totally enclosed with no exposed moving parts. Electronics are housed in chemical resistant enclosure at the rear of the pump for maximum protection against chemical spillage. Average electrical power consumption is 50 Watts.
Specifications:

• 115V
• 12 GPD
• 80 PSI

Features:

• Manual Control by on-line adjustable stroke rate and stroke length.
• Highly Reliable timing circuit.
• Circuit Protection against voltage and current upsets.
• Solenoid Protection by thermal overload with auto-reset.
• Water Resistant, for outdoor and indoor applications.
• Internally Dampened To Reduce Noise.
• Guided Ball Check Valve Systems, to reduce back flow and enhance outstanding priming characteristics.
• Few Moving Parts and Wall Mountable.
• Safe & Easy Priming with durable leak-free bleed valve assembly (standard).
• Reliable metering performance.
• Rated "hot" for continuous duty.
• Leak-free, sealless, liquid end.
