CAT Pumps 7722 Adjustable Stainless Steel Chemical Injector - 2-4 GPM, 3500 PSI, 3/8 x 3/8 x 1/4

Brand:
Mfr. Model #:
7722
KR Part #:
PU7722
Weight:
0.32 lbs
Usually Ships in 2 Weeks
MSRP
$232.00
Now Only!
$145.00
Stainless steel body chemical injector with a flow range from 2 to 4 GPM. Use on any standard discharge line. 3500 PSI, 3/8" x 3/8" MNPT inlet and outlet ports, 1/4" hose barb.



Technical Specifications

Orifice: 1.8
Max PSI: 3500
Max Temperature: 195 degrees F
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Max GPM: 4

Product Description

2-4 GPM Discharge Line Stainless Steel Injector

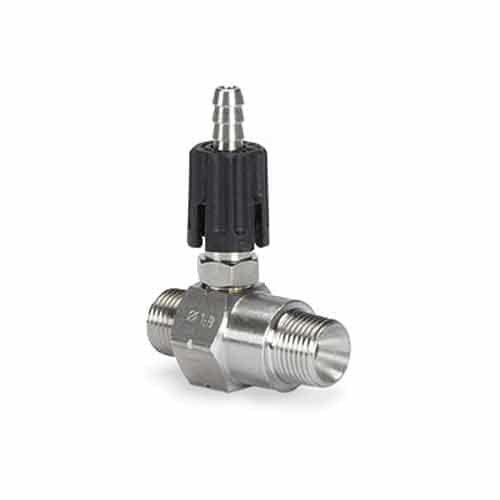

The CAT Pumps 7722 Chemical Injector is a stainless steel injector designed to draw chemical only under low pressure. The amount of chemical draw can be changed by turning the adjustment collar completely into the body to stop draw, and approximately 1-1/2 turns counterclockwise for maximum chemical draw. This version is ideal for discharge line installation.

Dimensions: 2" x 1" x 3"

Specifications:

  • 2-4 GPM flow rate range
  • 1.8 mm nozzle orifice
  • 3500 PSI maximum pressure
  • 1/4" barb hose
  • 3/8" MNPT inlet and discharge ports
  • 195° Fahrenheit maximum temperature
  • 316 stainless steel construction
  • Weight: .32 lbs.

Features:

  • Durable stainless steel orifice for chemical compatibility.
  • Convenient top handle for adjusting chemical draw.
  • Lightweight, compact unit.
  • Optional pump discharge line installation or mount directly to the unloader discharge port.
