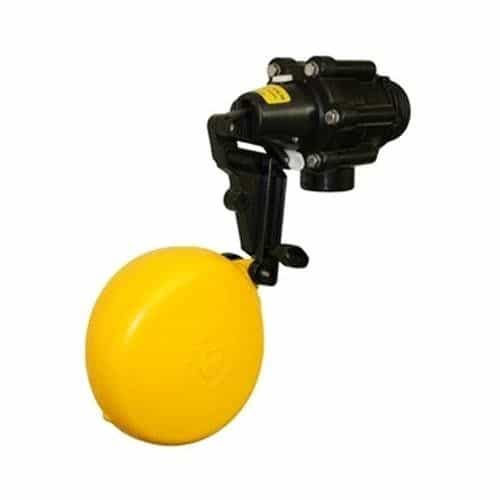

Jobe J-VXV2 Vortex Float Valve - 2 Inch NPT
Brand:
Mfr. Model #:
J-VXV2 / VXV0200
KR Part #:
JFVV32
Weight:
2.20 lbs
GTIN:
941881718029
Availability:
5
Vortex float valves are a good choice where maximum flow, compact non-corrosive construction and variable float levels are required. Features robust, durable construction for spectacular longevity. Made from nylon, plastic, and metal materials.
Product Description
2-Inch Vortex Float Valve
The Jobe J-VXV2 Vortex float valve is a float-operated valve that is built for for use in automatic filling of water tanks, troughs, and other reservoirs in car washes, agricultural applications, janitorial and sanitation applications, and industrial applications. Provides maximum flow and variable float levels, with compact non-corrosive construction. Configured for above-water mounting, the float operates a small pilot valve which in turn operates the main diaphragm valve.
Features:
- Shuts down slowly to minimize water hammer
- 20 - 60mm (3/4" - 2 1/2") water level differential (increases as water inlet pressure increases)
- Easily adjustable float position - no tools required
- Valve has switch to lock it in off position
- Port connects Frostpro anti freeze device
Specifications:
- Maximum Flow Rate: 300 GPM
- Pressure Range: 5 PSI - 150 PSI
- Max Operating Temp: 140°F
- Inlet Size: 2" NPT
- Weight: 2 lbs.
