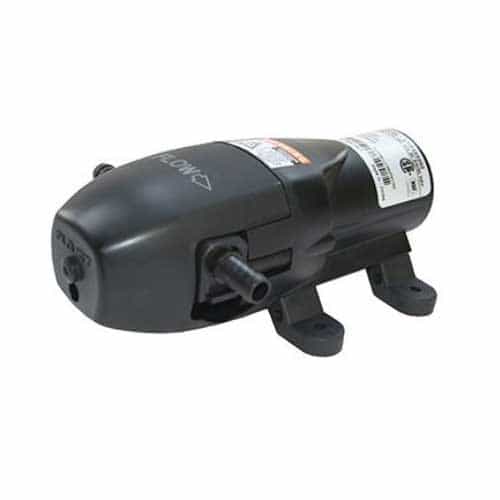

Flojet LFP521401D Electric 115AC .7 GPM LF Plus Series Diaphragm Pump - 40 PSI

Mfr. Model #:
KR Part #:
1.68 lbs
Out of Stock - Pre-Order Now
Now Only!
Polypropylene electric pump with 3/8" hose barb product ports and 115AC voltage.
Prep 65

Prop 65


Technical Specifications

Inlet Port: 3/8 inch
Max GPM: .7
Max PSI: 40
Voltage AC: 115

Product Description

 Polypropylene .7 GPM Electric Diaphragm Pump

The Flojet LFP521401D pumps at a flow rate of .7 GPM at 40 PSI and requires 115 volt power. This electric diaphragm pump is the ideal solution for low-pressure/low-flow spraying, fluid transfer, filtration, cooling, dispensing, and pressure boosting.


  • .7 GPM
  • 115 AC voltage
  • Quick disconnect 3/8" hose barb connections
  • FKM check valves
  • EP/PP blend diaphragm
  • Intermittent duty cycle
  • Self-priming at vertical height of 30"
  • Polypropylene housing
  • Reciprocating diaphragm pump design
  • Stainless steel check valve springs
  • 36° F to 110° F liquid temperature range
  • Max Amp Draw: .3 amp


  • Sealed pressure switch automatically starts and stops pump when discharge valve opens and closes
  • Self-priming so pump can be located above supply tank
  • Can run dry for extended periods of time without damage
  • Built-in thermal protector
  • Low amp draw for battery-powered applications
  • Optional sealed motor with protective metal cooling finned cover
