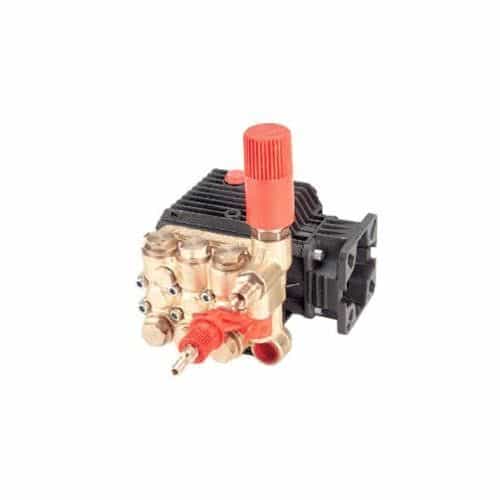

51 Series Pump with Electric Engine Flange

The General Pump TT2035EBF Pump is a triplex plunger pump that includes a flange for electric NEMA 56C motors with a maximum speed of 3400 RPM. Has a maximum flow rate of 3.5 GPM and a maximum pressure of 2000 PSI. Features a die-cast aluminum crankcase, a forged brass manifold, and solid ceramic plungers. A great choice for high-pressure spraying, misting, and cleaning applications!

Dimensions: 7.0" x 7.2" x 5.5"

Features include:

• Forged brass manifold with exclusive lifetime warranty
• Die cast, anodized aluminum, oil-bath crankcase
• Solid ceramic plungers with continuously lubricated packings
• The original Interpump unitized, stainless steel, K01 inlet and outlet valves
• Ideal for all general cleaning applications
• Features a built-in unloader valve and downstream chemical injector

Specifications:

• Maximum Volume: 3.5 GPM
• Maximum Discharge Pressure: 2000 PSI
• Maximum Pump Speed: 3400 RPM
• Maximum Inlet Pressure: 125 PSI
• Maximum Inlet Vacuum: 3 ft. water (2.6 in. Hg)
• Bore: .591 in. / 15 mm
• Stroke: .315 / 8
• Crankcase Oil Capacity: 11.2 oz.
• Maximum Fluid Temperature: 165 F
• Inlet Port Thread: 3/8-19 BSPP-F
• Discharge Port Thread: 1/4-19 BSPP-F
• Shaft: 3/4 in./19 mm, Hollow, Right Side
• Weight: 11.5 lbs.
• Dimensions: 7.0" x 7.2" x 5.5"
