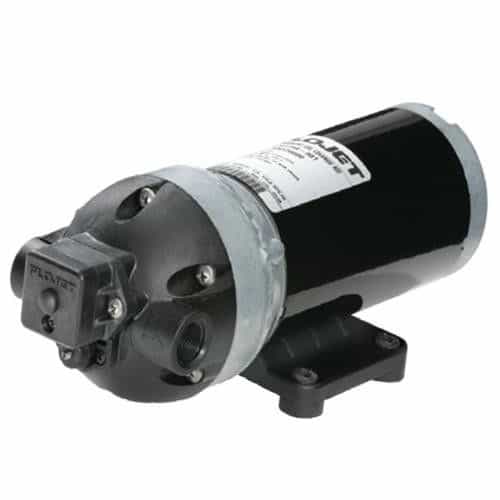

Flojet 03811043A Self-Priming High Pressure Triplex Pump - 150 PSI, 1.4 GPM, 115 VAC

Brand:
Mfr. Model #:
03811043A
KR Part #:
FP03811043
Weight:
7.64 lbs
In Stock
MSRP
$265.60
Now Only!
$201.22
This is a triplex pump constructed with materials that handle a variety of chemicals. Provides a maximum flow rate of 1.4 GPM. Can run dry without damage for a period of time.
Prep 65

Prop 65




Technical Specifications

Max GPM: 1.4
Max PSI: 150
Voltage AC: 115
Outlet Port: 3/8 inch
Inlet Port: 3/8 inch

Product Description

1.4 GPM Electric Pump

The Flojet 03811043A pump features a unique three chamber design that delivers excellent flow rates and pressures. Handles pressures up to a maximum of 150 PSI. Well-suited for spraying, misting, filtration, cooling, dispensing and pressure boosting. NPTF Threaded inlet and outlet ports with a diameter that measures 3/8 inches.

Specifications:

  • Open Flow: GPM 1.4
  • Switch Pressure: PSI 150
  • Voltage: 115 VAC
  • Duty Cycle: Intermittent
  • Port Size: 3/8" NPTF
  • Motor Design Perm. Magnet TENV (non-ventilated)
  • Pump Head Material: Glass Filled Nylon
  • Diaphragm: Santoprene¨
  • Check Valve: EPDM¨
  • Certifications: CE, NSF components
  • Weight: 7.6lbs (3.5kg)

Features:

  • Flow rates up to 1.4 GPM (5.3 LPM) and operating pressure of up to 150 Psi (10.3 bar)
  • Constructed from a selection of materials suitable for handling a broad range of chemicals
  • Innovative bypass design
  • Self-priming up to 8ft (2.4m)
  • Sealed motor
  • Can run dry for extended periods of time without damage
  • Coinjected molded diaphragm technology
  • Consistent pressure over time

Applications:

  • General Industrial
    • Chemical washdown
    • Evaporative Cooling Systems
  • Agricultural
    • Misting
    • Spot Sprayers
    • Boom Sprayers (to reach tree tops)
  • Floor Care
    • Carpet Extractors
    • Carpet Cleaning
  • Automotive
    • Boost Cooling
