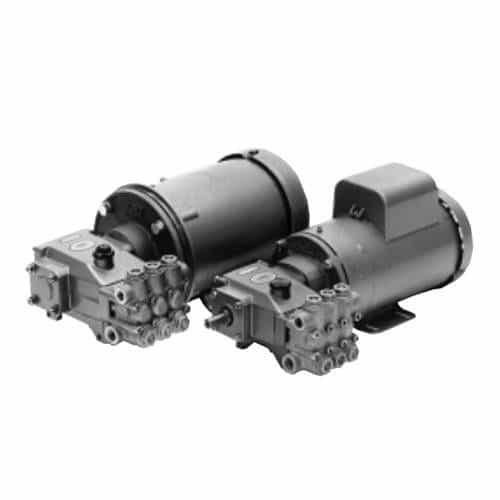

CAT Replacement BD Motorized Pump Unit

Replace a broken or malfunctioning motor in CAT pumps. Official OEM replacement part for use in CAT pump models: 340, 341, 347, 350, 351,357. Does not require pulleys, belts, belt guards, or adjustments for install. A flange mount is required to mount the electric motor to the pump. The motor is easy to assemble.

Specifications

• Flange assembly - required: 8003

• Horsepower: 3 HP

• Single phase

• Frame size: 184TC

• 230V

• 13.2 amps

• Service factor: 1.0

• Maximum operating temperature: 104 degrees F

• Shaft diameter (hollow): 20 mm

• Thermo overload?: Yes

• Capacitator start?: Yes

• Insulation: Class F

• CSA Reference No.: LR-2262

• UL Reference No.: E-46145
