General Pump 66 Series TSF1819 - 6.3 GPM, 4350 PSI
Brand:
Mfr. Model #:
TSF1819
KR Part #:
GPTSF1819
Weight:
40.70 lbs
GTIN:
682491120100

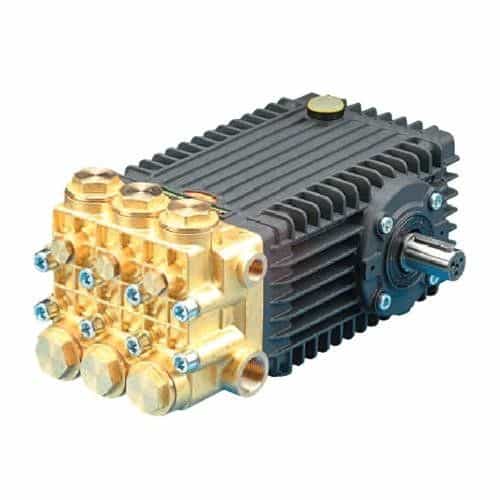

TSF high flow triplex pump from General Pumps with right side shaft. Provides 6.3 GPM flow at pressures up to 4350 PSI. Uses GP Series 100 oil.
Technical Specifications
Bore: 18 millimeter
Crankcase Capacity: 40.6 ounce
Stroke: 19 millimeter
Shaft Diameter: 24 millimeter
RPM: 1750
Max Temperature: 165 degrees F
Max PSI: 4350
Max GPM: 6.3
Inlet Port: 3/4 inch
Horsepower: 18.8
Product Description
24 mm Solid Shaft 66 Series Pressure Cleaning Pump
This General Pump TSF1819 triplex pump has a right shaft. It features oversized roller bearings and a fully anodized crankcase. Its innovative seal is designed for extended seal life. The plunger design improves thermal shock resistance, while the valve cap improves hydrostatic performance.
Dimensions: 14.94" x 9.78" x 6.99"
- Max Volume: 6.3 GPM
- Max Discharge Pressure: 4350 PSI
- Max Pump Speed: 1750 RPM
- Max Inlet Pressure: 125 PSI
- Max Inlet Vacuum: 9 ft. water
- Bore: 18 millimeter
- Shaft: 24 millimeter
- Max Temperature: 165°F
