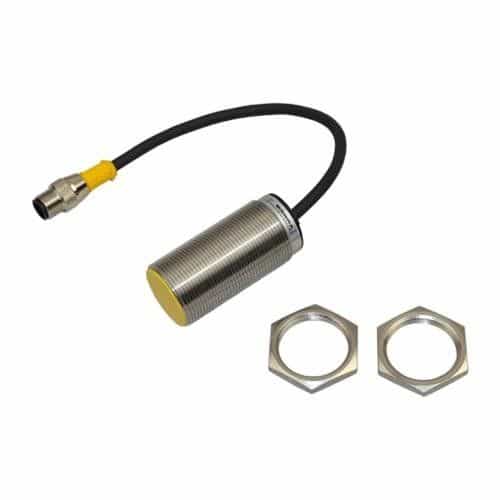

Turck Sensor BI15-EM30-AN45XLD Proximity Switch - 4-Pin, 2-Meter Euro Cord
Brand:
Mfr. Model #:
BI15-EM30-AN45XLD-0.2M-RS 4T
KR Part #:
TPS1140
Weight:
0.26 lbs
Availability:
1
An inductive sensor engineered for maximum reliability even under the most extreme environmental conditions. Features protection against salt spray and rapid temperature change. Laser engraved label, permanently legible
Product Description
Inductive Sensor For Vehicle Board Nets
TURCK's inductive sensors for extremely hostile industrial environments not only meet, but even exceed the requirements of the protection classes IP68 and IP69. Applied in vehicles for road construction or in agricultural machines, these sensors excel in high vibration and shock resistance and they withstand fast temperature cycles.Specifications:
- M30 × 1.5 threaded tube
- Stainless steel, 1.4301
- For vehicle board nets, 12 V and 24 V
- Increased interference immunity 100 V/m
radiated acc. ISO 11452-4 and 100 mA BCI
acc. to ISO 11452-2 - Load-dump protection acc. to DIN ISO
7637-2 (SAE J 113-11) - Extended temperature range
- High protection class IP68/IP69K
- DC 3-wire, 8.4…65 VDC
- NO contact, Normally Open NPN output
- Cable connection
- M12x1, Male, 3-Pin Connector
- .2 Meter Cable Eurofast
- Flush mount embeddable
