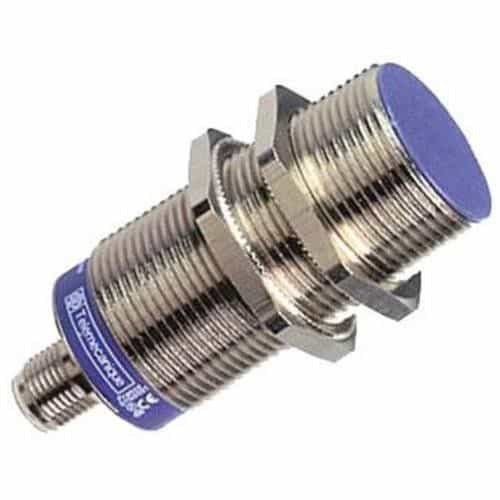

PNP Output Sensor

This Telemecanique OsiSense XS cylindrical M30 sensor is great for general purpose uses around your car wash. It is an inductive proximity sensor that has a fixed body and a 15mm nominal sensing distance. Plus, the IP67/IP69K rating mean it's safe for use in wet environments!

The XS6 M30 inductive proximity sensor has a discrete output signal and can sense metal objects up to 60mm away, no contact needed. Use it in car washing, assembly line machines, robotics, machining tools, packaging systems, conveyor belts, food production, and more!

Dimensions: 74mm length

• XS6 M30 sensor
• OxiSense XS line

• 15 mm nominal sensing distance with frontal detection face
• 1 yellow status LED
• 3-wire design

• 4 pin male electrical connector
• M30 x 1.5 thread with 52 mm (2.05") threaded length
• Ambient air temperature for operation: -13°F to 158°F
• Ambient air temperature for storage: -40°F to 185°F

• Telemecanique part #: XS630B1NAM12
