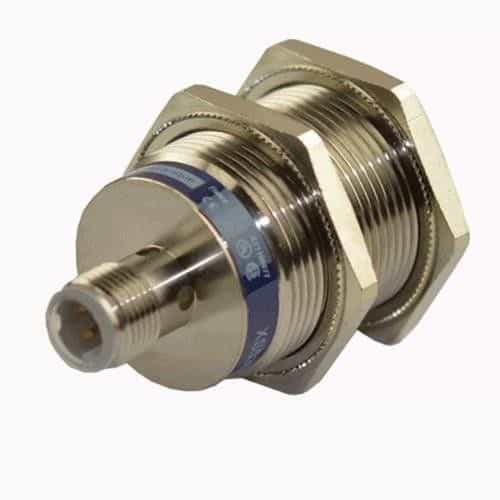

Telemecanique OsiSense XS530B1NAM12 Inductive Proximity Sensor - 55 mm

Brand:
Mfr. Model #:
XS530B1NAM12
KR Part #:
STP2080
Weight:
0.26 lbs
GTIN:
338911014406
In Stock
MSRP
$240.56
Now Only!
$102.79
Metal sensor with nickel plated brass enclosure designed for general purpose use.



Technical Specifications

Certifications: CSA, UL
Voltage DC: 24

Product Description

NPN Discrete Output

The Telemecanique OsiSense XS5 cylindrical M30 inductive proximity sensor is designed for general purpose applications. This sensor has a fixed body and nickel plated brass enclosure with a 10 mm nominal sensing distance. It has an IP67 rating conforming to IEC 60529 and offers a discrete output signal.

XS inductive proximity sensors are for non contact sensing of metal objects up to 60 mm. Applications include: use on assembly machines, robotics, machining tools, packaging operations, conveyors, food and beverage production, and more!

Dimensions: 30 mm height x 55 mm length

This sensor is compatible with:

  • Kleen-Rite part # STP135 PVC straight cordset (manufacturer model # XZCPV1141L2)

Features:

  • XS5 M30 sensor
  • OxiSense XS line
  • 10 mm nominal sensing distance with frontal detection face
  • 1 yellow status LED
  • 3-wire design
  • NPN discrete output on DC circuit
  • 24 VDC electrical connection with reverse polarity protection required
  • 4 pin M12 male electrical connector
  • M30 x 1.5 thread with 32 mm threaded length
  • Ambient air temperature for operation: -25°C to 70°C
  • Ambient air temperature for storage: -40°C to 85°C
  • CSA and UL certified
  • Telemecanique part #: XS530B1NAM12
