Telemecanique OsiSense XS4P30MA230K Inductive Proximity Switch - 70 mm

Brand:
Mfr. Model #:
XS4P30MA230K
KR Part #:
STP2070
Weight:
0.18 lbs
GTIN:
3389110919578
Usually Ships in 4 Weeks
MSRP
$283.96
Now Only!
$121.33
Plastic sensor with PPS enclosure designed for general purpose use. 15 mm nominal sensing distance. Compatible with 24 Volt power.



Technical Specifications

Certifications: CCC, CSA, UL, Ecolab
Voltage AC: 24
Voltage DC: 24

Product Description

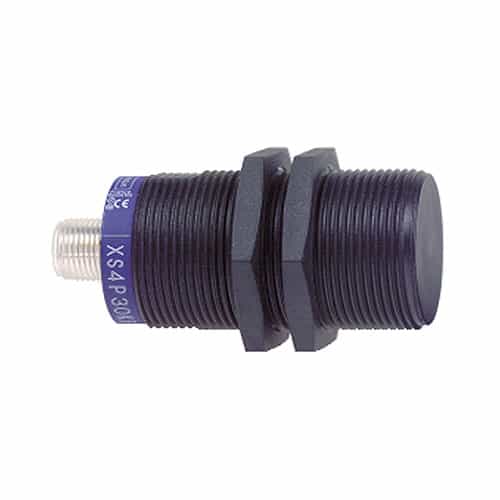

XS4 Cylindrical M30 Sensor

The Telemecanique OsiSense inductive proximity sensor is designed for general purpose applications. This sensor has a fixed body and a 15 mm nominal sensing distance. It has an IP67 rating conforming to IEC 60529 and offers a discrete output signal.

XS inductive proximity sensors are for non contact sensing of metal objects up to 60 mm. Applications include: use on assembly machines, robotics, machining tools, packaging operations, conveyors, food and beverage production, and more!

Dimensions: 30 mm height x 70 mm length

This sensor is compatible with:

  • Kleen-Rite part # STP130 PVC straight cordset (manufacturer model # XZCPV1865L10)
  • Kleen-Rite part # STP122 PVC 90 degree elbow cable (manufacturer model # XZCPV1865L5)
  • Kleen-Rite part # STP120 PUR straight cable (manufacturer model # XZCP1865L2)
  • Kleen-Rite part # STP125 PUR 90 degree elbow cable (manufacturer model # XZCP1965L2)

Features:

  • XS4 M30 sensor
  • OxiSense XS line
  • 15 mm nominal sensing distance with frontal detection face
  • 1 yellow status LED
  • 2-wire design
  • Discrete output on AC/DC circuit
  • 24V, 50/60 Hz
  • Electrical connection: 1/2" 20 UNF male connector, 3 pins
  • M30 x 1.5 thread with 52 mm threaded length
  • Ambient air temperature for operation: -25°C to 70°C
  • Ambient air temperature for storage: -40°C to 85°C
  • Telemecanique part #: XS4P30MA230K
