NPN Discrete Output

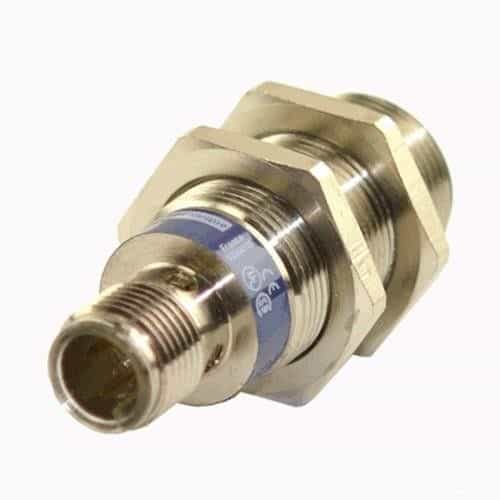

The Telemecanique OsiSense XS cylindrical M18 inductive proximity sensor is designed for general purpose applications. This sensor has a fixed body and nickel plated brass enclosure with a 10 mm nominal sensing distance. It has an IP67 rating conforming to IEC 60529 and offers a discrete output signal.

XS inductive proximity sensors are for non contact sensing of metal objects up to 60 mm. Applications include: use on assembly machines, robotics, machining tools, packaging operations, conveyors, food and beverage production, and more!

Dimensions: 18 mm height x 50 mm length

This sensor is compatible with:

• Kleen-Rite part # STP135 PVC straight cordset (manufacturer model # XZCPV1141L2)

Features:

• XS1 M18 sensor
• OxiSense XS line

• 10 mm nominal sensing distance with frontal detection face
• 1 yellow status LED
• 3-wire design
• NPN discrete output on DC circuit

• 24 VDC electrical connection with reverse polarity protection required
• 4 pin M12 male electrical connector
• M18 x 1 thread with 28 mm threaded length
• Ambient air temperature for operation: -25°C to 50°C
• Ambient air temperature for storage: -40°C to 85°C
• CSA and UL certified
• Telemecanique part #: XS1N18NA349D
