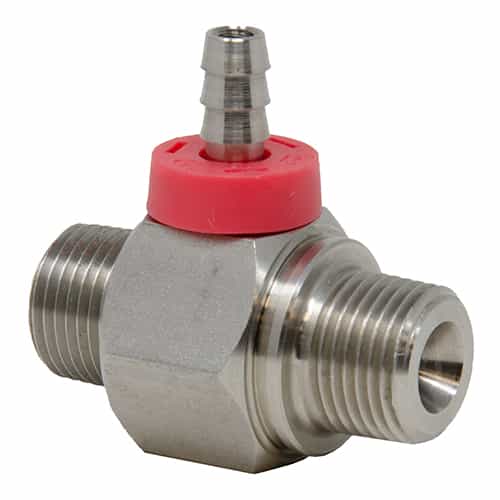

General Pump 100336RD Red Hose Barb Stainless Steel Chemical Injector - .057 in. Orifice
Brand:
Mfr. Model #:
100336RD
KR Part #:
GPP100336
Weight:
0.26 lbs
GTIN:
682491124184
Stainless steel chemical injector with a Kynar hose barb chemical port. Features a maximum 5500 PSI, 2 GPM, and an operating temperature of 190 F. Comes with stainless steel hose barb and red cap which denotes a .057" orifice.
Made In The USA
Technical Specifications
Max PSI: 5500
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Orifice: .057 inch
Max Temperature: 190 degrees F
Max GPM: 2
Product Description
5500 PSI Chemical Injector - .057"
The General Pump 100336RD Chemical Injector is designed specifically for car wash applications. This stainless steel chemical injector has a flow rate of 1-2 GPM, a maximum pressure rating of 5500 PSI, and a maximum liquid temperature of 190 F.
Specifications:
- 3/8" NPT-M inlet
- 3/8" NPT-M discharge
- 1/4" stainless steel hose barb
- .057" orifice on bard denoted by red cap
- 1-2 GPM flow rate range
- 5500 PSI max pressure
- 190° Fahrenheit max temperature
- Fixed design
- Made in the U.S.A.
- Weight: .4 lbs.
- General Pump K320RD Repair Kit available for this injector
UPC:
- 682491124184
