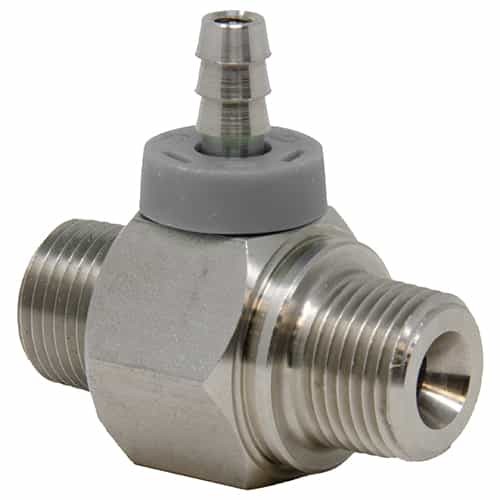

General Pump 100334GY Grey Hose Barb Stainless Steel Chemical Injector - .083 in. Orifice
Brand:
Mfr. Model #:
100334GY
KR Part #:
GPP100334
Weight:
0.26 lbs
GTIN:
682491124177
Stainless steel chemical injector with a Kynar hose barb chemical port. Touts a maximum 5500 PSI, 4 GPM, and 190 F operating temperature. Grey color on the stainless steel hose barb denotes a .083" orifice.
Made In The USA
Technical Specifications
Max PSI: 5500
Max Temperature: 190 degrees F
Max GPM: 4
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Orifice: .083 inch
Product Description
5500 PSI Chemical Injector - .083"
The General Pump 100334GY Chemical Injector is designed specifically for car wash applications. This stainless steel chemical injector has a flow rate of 2-4 GPM, a maximum pressure rating of 5500 PSI, and a maximum liquid temperature of 190 F. The grey cap on the stainless steel hose barb is an indication that the barb orifice measures .083".
Specifications:
- 3/8" NPT-M inlet
- 3/8" NPT-M discharge
- 1/4" stainless steel hose barb
- .083" barb orifice indicated by grey cap
- Max Flow Rate: 2-4 GPM
- Max PSI: 5500
- Max Temperature: 190 F
- Fixed design
- Made in the U.S.A.
- Weight: .4 lbs.
- General Pump K320GY Repair Kit available for this injector
UPC:
- 682491124177
