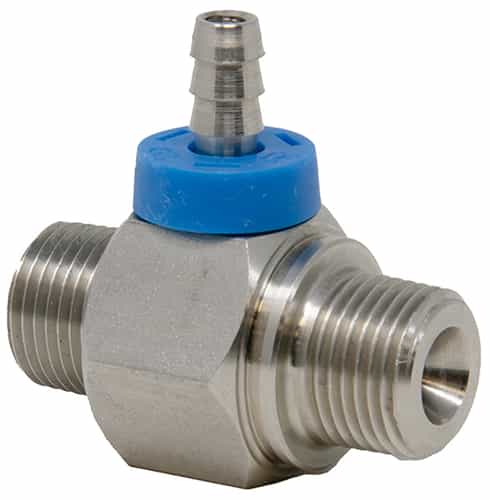

General Pump 100333BL Blue Hose Barb Stainless Steel Chemical Injector - .087 in. Orifice
Brand:
Mfr. Model #:
100333BL
KR Part #:
GPP100333
Weight:
0.26 lbs
GTIN:
682491124160
Stainless steel chemical injector with a Kynar hose barb chemical port. Reaches a maximum of 5500 PSI, 5 GPM, and a 190 F operating temperature. A blue colored cap on the stainless steel hose barb indicates a .087" orifice.
Made In The USA
Technical Specifications
Max Temperature: 190 degrees F
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Max PSI: 5500
Orifice: .087 inch
Max GPM: 5
Product Description
5500 PSI Chemical Injector - .087"
The General Pump 100333BL Chemical Injector is designed specifically for car wash applications. This stainless steel chemical injector has a flow rate of 3-5 GPM, a maximum pressure rating of 5500 PSI, and a maximum liquid temperature of 190 F. The blue cap attached to the stainless steel hose barb indicates a .087" orifice.
Specifications:
- 3/8" NPT-M inlet
- 3/8" NPT-M discharge
- 1/4" stainless steel hose barb chemical port
- .087" orifice is indicated by the blue cap
- Max GPM: 3-5
- Max PSI: 5500
- Max Temperature: 180 F
- Fixed design
- Made in the U.S.A.
- Weight: .4 lbs.
UPC:
- 682491124160
