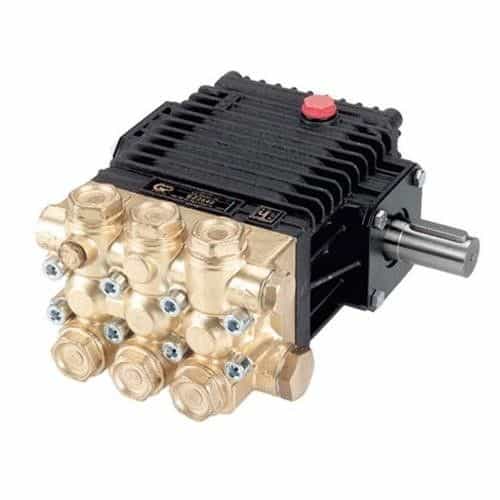

General Pump EZ2536S EZ Series 44S Triplex Plunger Pump - 3.6 GPM, 2500 PSI
Brand:
Mfr. Model #:
EZ2536S
KR Part #:
GPEZ2536S
Weight:
18.00 lbs
GTIN:
682491119807
2500 PSI Triplex Plunger Pump featuring solid ceramic plungers, ideal for general pressure cleaning and washing applications. Features die-cast, anodized aluminum, oil-bath crankcase and unitized stainless steel inlet and discharge valves. 3.6 GPM flow from a compact, flanged unit.
Technical Specifications
Crankcase Capacity: 14 oz.
Max GPM: 3.6
Max PSI: 2500
Max Temperature: 165 degrees F
RPM: 1750
Stroke: 11 millimeter
Bore: 18 millimeter
Shaft Diameter: 24 millimeter
Inlet Port: 1/2 inch
Product Description
General Pump EZ Series 44 S Pump
Medium-duty Triplex Plunger Pump features solid ceramic plungers, die-cast, anodized aluminum, oil-bath crankcase and unitized stainless steel inlet and discharge valves for excellent reliability and durability. Compact design for ease of integration into system. Features 24mm solid shaft.Dimensions: 8.6" x 8.7" x 5.5"
Features:
- Solid ceramic plungers
- Right shaft
- Forged brass manifold with an exclusive lifetime warranty and 4:1 hydrostatic rating
- Die-cast, anodized aluminum, oil-bath crankcase
- Premium roller bearing
- Unitized stainless steel inlet and discharge valves
Specifications:
- Maximum Volume: 3.6 GPM
- Maximum Pressure: 2500 PSI
- Maximum Pump Speed: 1750 RPM
- Maximum Fluid Temperature: 165°F
- Inlet Port: 1/2"-14 BSPP-F
- Outlet Port: 3/8"-19 BSPP-F
