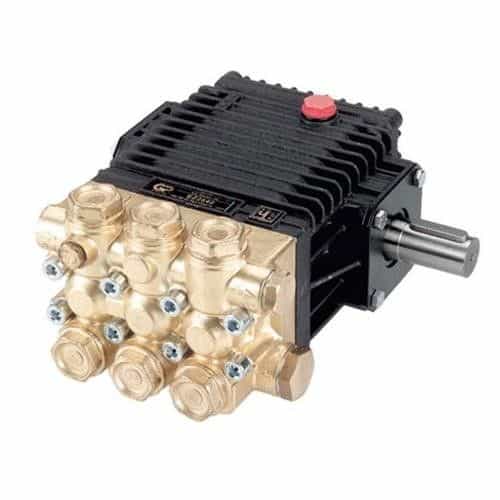

General Pump EZ2555S EZ Series 44S Triplex Plunger Pump, 5.5 GPM, 2500 PSI, Right Shaft
Brand:
Mfr. Model #:
EZ2555S
KR Part #:
GPEZ2555S
Weight:
18.00 lbs
GTIN:
682491119845
2500 PSI, 3400 RPM Triplex Plunger Pump featuring solid ceramic plungers, ideal for general pressure cleaning and washing applications. Features die-cast, anodized aluminum, oil-bath crankcase and unitized stainless steel inlet and discharge valves. 5.5 GPM flow from a compact, right-shaft drive unit.
Technical Specifications
Bore: 15 millimeter
Crankcase Capacity: 14 ounce
Inlet Port: 1/2 inch
Max GPM: 5.5
Max PSI: 2500
Shaft Diameter: 24 millimeter
Stroke: 13 millimeter
RPM: 3400
Max Temperature: 165 degrees F
Product Description
General Pump EZ Series 44 S Pump
Medium-duty Triplex Plunger Pump features solid ceramic plungers, die-cast, anodized aluminum, oil-bath crankcase and unitized stainless steel inlet and discharge valves for excellent reliability and durability. Compact design for ease of integration into system. Features 24mm hollow shaft flanged for direct couple to standard motors.
Dimensions: 8.6" x 8.7" x 5.5"
Features
- Solid ceramic plungers
- Right shaft
- Forged brass manifold with an exclusive lifetime warranty and 4:1 hydrostatic rating
- Die-cast, anodized aluminum, oil-bath crankcase
- Premium roller bearing
- Unitized stainless steel inlet and discharge valves
- Flex coupling and bell housing available for direct drive
Specifications
- Maximum Volume: 5.5 GPM
- Maximum Pressure: 2500 PSI
- Maximum Pump Speed: 3400 RPM
- Maximum Fluid Temperature: 165°F
- Inlet Port: 1/2"-14 BSPP-F
- Outlet Port: 3/8"-19 BSPP-F
