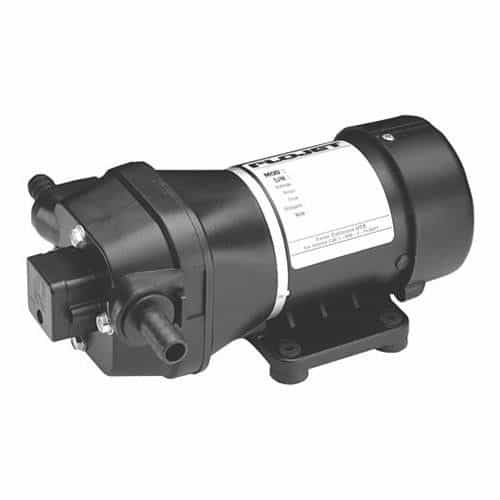

Flojet 04300343A 24V Electric 5 GPM Diaphragm Pump - 40 PSI

Mfr. Model #:
KR Part #:
4.00 lbs
Out of Stock - Pre-Order Now
Now Only!
Self-priming polypropylene construction pump with 3/4" standard hose bar ports. Operates on 12 volt DC power. Capable of dry-running.
Prep 65

Prop 65


Technical Specifications

Inlet Port: 3/4 inch
Max GPM: 5
Max PSI: 40
Voltage DC: 12

Product Description

5 GPM Polypropylene Electric Diaphragm Pump

Part of the Flojet 4000 Quad Series, this diaphragm pump uses a four piston design that has excellent self-priming capability. The Flojet 04300343A electric pump operates on 12 volt DC power and is rated at a flow rate of 5 GPM and a maximum pressure of 40 PSI. Boasts dry-running capabilities and easy mounting installation!

  • 5 GPM max flow
  • 40 PSI max pressure
  • 3/4" snap-in hose barb ports
  • 24VDC
  • EPDM valves
  • Santoprene diaphragm
  • Permanent magnet motor
  • 1.5 amp max
  • Self-priming up to 8 ft. vertical height
  • 4 piston design


  • Built-in pressure switch automatically starts and stops pump instantaneously when discharge valve opens and closes
  • Compact design and plug-in port fittings make installation easy
  • Can run dry without damage and handle liquids up to 130° F (54° C)
  • No metal contact with liquid being pumped
  • Ball bearing drive throughout pump and motor assures longer pump life
  • Excellent self-priming capability. Pump may be located above the liquid level
  • Powerful, permanent magnet motor with low current draw and long life brushes
