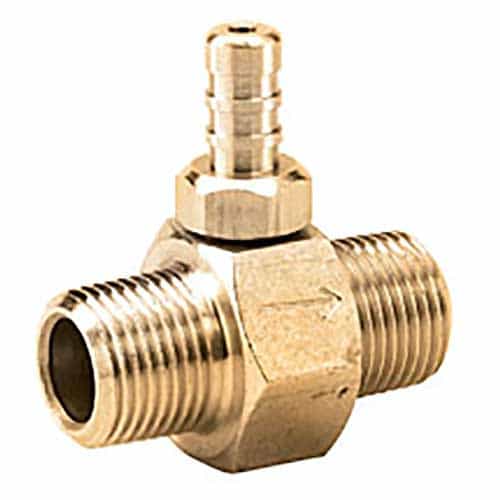

J.E. Adams 7263P Fixed Downstream Chemical Injector - 2.1 Orifice, 3-5 GPM, 3/8 Inch MPT
Brand:
Mfr. Model #:
7263P
KR Part #:
IN7263P
Weight:
0.25 lbs
Usually Ships in 2 Weeks
A downstream soap injector from J.E. Adams. The 7263P boasts a 180 F maximum temperature, a 3000 PSI maximum, and a 2-3 GPM rating. Made from brass. Offers 10% draw rate.
Repair kit is available.
Technical Specifications
Max PSI: 3000
Max Temperature: 180 degrees F
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Min GPM: 2
Max GPM: 3
Product Description
Downstream Soap Injector
The J.E. Adams 7263P is a downstream chemical injector designed for applications in car washes or pressure washing systems. The injector features a draw rate of 10%. Connections measure 3/8" MxM with MPT threading. It handles a maximum pressure of 3000 PSI and 5 GPM. Housing is constructed with brass and the O-rings are made with Viton.
Given the engineering care and expertise that went into this downstream chemical injector, many car wash owners are particularly keen on this J.E. Adams product. It's the type of injector you can trust to hold up long-term despite the environmental rigors and heavy usage associated with car washes!
Soap Injector Specifications:
- Design: Fixed
- Max Temperature: 180 Degrees F
- Max PSI: 3000
- Flow GPM: 3-5
- Housing Material: Brass
- O-ring Material: Viton
- Inlet: 3/8 MPT
- Outlet: 3/8 MPT
- Draw Rate: 10%
