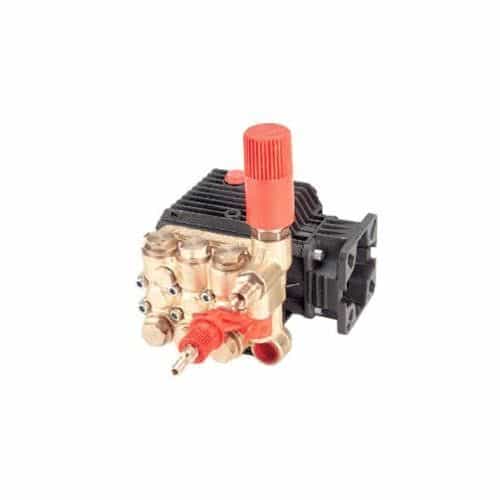

General TP2520J34UIL TP 51 Series Pump 1.9GPM
Brand:
Mfr. Model #:
TP2520J34UIL
KR Part #:
GPTP2520J34UIL
Weight:
12.00 lbs
GTIN:
682491119371
This General Pump has a new generation seal system that allows for a longer life. High-volume, mid-pressure pump built for rigorous duty cycles, high temperatures, and chemicals. Includes unloader and downstream injector, left-hand drive.
Technical Specifications
Bore: 15 millimeter
Crankcase Capacity: 11 ounce
Inlet Port: 3/8 inch
Max GPM: 1.9
Max PSI: 2500
Max Temperature: 165 degrees F
Stroke: 5 millimeter
Shaft Diameter: 3/4 inch
Product Description
2500 PSI General Pump with Unloader and Injector
This General Pump TP series pump is a triplex plunger pump that has a solid ceramic plunger with a dual guide system. New optimized outlet valves and new generation seal system that allows for a longer life. High-volume, mid-pressure pump built for rigorous duty cycles, high temperatures, and chemicals.
Dimensions: 7.0" x 7.2" x 5.1"
- Triplex Plunger Pump
- Forged brass manifold with exclusive lifetime warranty
- Die-cast, anodized aluminum oil/bath crankcase.
- Unitized, stainless steel inlet and outlet valves.
- Over-sized connecting rods for ultimate crankcase performance
- Solid ceramic plungers with continuously lubricated packings
- Ideal for all general cleaning and misting applications.
- Includes unloader and downstream injector
- Left-hand drive
Specifications:
- Max Volume: 1.9 GPM
- Max Discharge Pressure: 2500 PSI
- Max Pump Speed: 3400 RPM
- Max Inlet Pressure: 125 PSI
- See more under the Specifications tab
