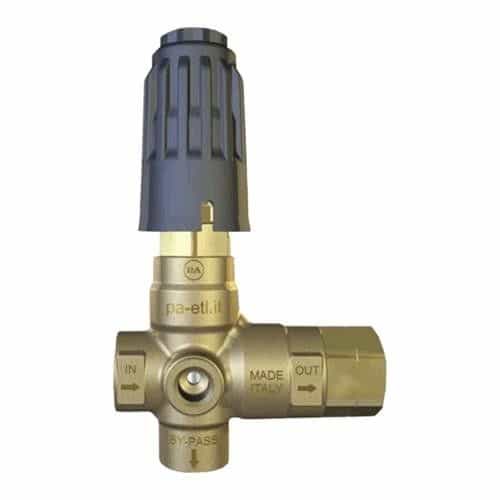

General Pump YVB4021HT Pressure Trapping Unloader, 21 GPM, 4050 PSI
Brand:
Mfr. Model #:
YVB4021HT
KR Part #:
GPU4021B
Weight:
2.42 lbs
GTIN:
682491104179
Availability:
4
Low Inventory Get It Today
Manuals
High temperature brass unloader for EZ Series pumps. 4050 PSI rated pressure, 4500 PSI maximum pressure. Great for use in multiple gun situations.
Technical Specifications
Max GPM: 21
Max PSI: 4500
Min PSI: 400
Max Temperature: 195 degrees F
Inlet Port: 1/2 inch
Outlet Port: 1/2 inch
Product Description
4500 PSI High Temp Unloader
The General Pump YVB4021HT pressure unloading device is made with highly durable brass and stainless steel. This unloader has 1/2" inlets and a 1/2" outlet. It is rated for a maximum flow rate of 21 GPM and a maximum pressure rating of 4500 PSI, and includes high temp brass components for continual temperatures up to 185° F and short periods at 195° F. Maintain consistent pressure and protect yourself from dangerous spiking.
Dimensions: 6.5" x 4.0" x 1.7"
Specifications:
- Maximum Flow: 21 GPM
- Rated Pressure: 4050 PSI
- Maximum Pressure: 4500 PSI
- Inlet Port: 1/2" BSP-F
- Outlet Port: 1/2" BSP-F
- Max Temperature: 195°
