Yamada DP-15BPT Polypropylene Air-Powered Double Diaphragm Pump - 7.4 GPM, 1/2 NPT, Teflon

Brand:
Mfr. Model #:
DP-15BPT
KR Part #:
YADP15BPT
Weight:
9.40 lbs
GTIN:
814338023286
Availability:
3
Low Stock Warning
Add to Cart for Price
Poly body air-operated pump with an aluminum motor and two diaphragms. Has a maximum flow rate of 7.4 GPM. This model includes PTFE seals, diaphragms, and ball valve.



Technical Specifications

Inlet Port: 1/2 inch
Max GPM: 7.4
Max PSI: 100
Outlet Port: 1/2 inch
RPM: 300
Max Temperature: 180 degrees F

Product Description

7.4 GPM Diaphragm Pump with Teflon Elastomer

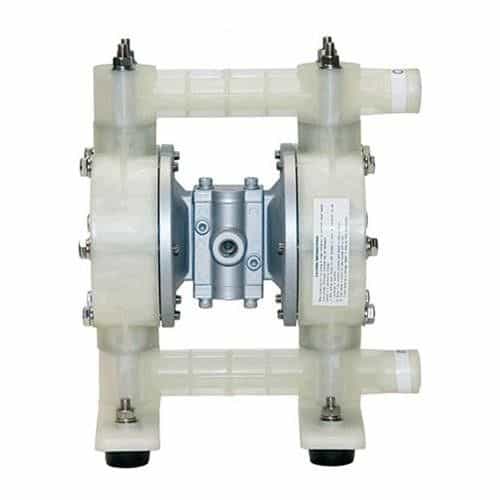

The Yamada DP-15BPT Pump is a dual diaphragm pump powered by air pressure. This AODD pump has a max flow rate of 7.4 GPM and a maximum air pressure of 100 PSI. It has a polypropylene body and an aluminum air motor. The diaphragm, ball valve, and o-rings are made with Teflon material.
Please see the Yamada Corrosion Guide under "Manuals" for chemical compatibility.


Specifications:

  • 7.4 GPM
  • Diaphragms: PTFE (Teflon)
  • Ball Valve: PTFE (Teflon)
  • O-Rings: PTFE (Teflon)
  • Inlet and Outlet Ports: 1/2" Female NPT
  • Air Inlet: 1/4" Female NPT (includes ball valve)
  • Air Exhaust: 3/8" Female NPT (includes silencer)
  • Maximum Liquid Temperature: 180° Fahrenheit
  • Air Supply Pressure: 20 to 100 PSI (1.4 to 7 kgf/cm_)
  • Maximum Solid: 1/32"
  • Suction Lift: 5 - 8 feet
  • RPM: 300 (cycle speed)
  • Weight: 7.7 lbs.

Applications:

  • Car Wash
  • Washing/Cleaning Systems
  • Chemical Delivery/Transfer
  • Gas/Petroleum
  • Paints/Dyes
  • Mining
  • Printing/Ink
  • Stone/Clay/Glass
  • Water Treatment
