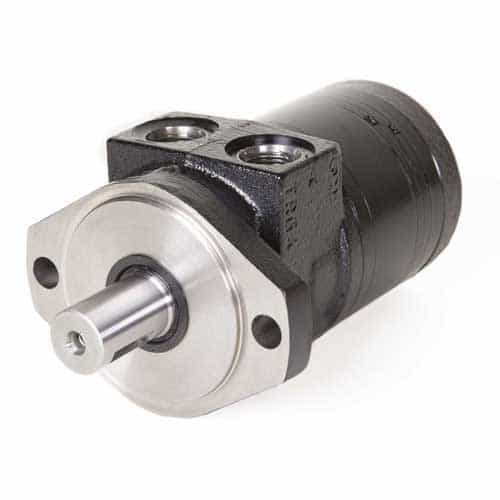

Parker TB0130FS210AAAA TB Series 18 HP Hydraulic Torqmotor - 130 CC Displacement

Brand:
Mfr. Model #:
TB0130FS210AAAA
KR Part #:
PM1125
Weight:
13.90 lbs

Call For Availability

MSRP
$660.50
Now Only!
$423.40
Use a hydraulic style motor for light duty applications where low speed and high torque is required.



Technical Specifications

Max PSI: 2400
RPM: 430
Horsepower: 18
Inlet Port: 7/8 inch
Shaft Diameter: 1 inch

Product Description

130 Cubic Centimeter High Torque Motor

The Parker TB0130FS210AAAA hydraulic motor is part of the TB Series. This low speed, high-torque (LSHT) motor is a rugged orbital motor built to have a long life and superior side load capacity. High-volume fluid flow continually washes across the splines and seals to extend their life. Roller vanes and sealed commutation assure high volumetric efficiency and smooth low-speed operation.

This economical light duty motor is an excellent option for automatic car washes and other harsh environments where motors are frequently exposed to water. Ideal for use with machines like conveyors, winches, gear boxes, and augers.

Specifications:

  • 1800 PSI continuous duty maximum pressure
  • 2400 PSI intermittent duty maximum pressure
  • 2750 PSI maximum supply pressure
  • 430 RPM maximum speed
  • 1951 pounds-inch maximum torque (continuous duty)
  • 2632 pounds-inch maximum torque (intermittent duty)
  • 1482 pounds-inch minimum starting torque (continuous duty)
  • 2024 pounds-inch minimum starting torque (intermittent duty)
  • 130 cubic centimeter displacement
  • 12 GPM maximum oil flow (continuous duty)
  • 15 GPM maximum oil flow (intermittent duty)
  • 18 horsepower
  • 4 bolt with 3/8-16 UNC mounting
  • 7/8-14 SAE
  • 1" keyed shaft; corrosion resistant
  • Standard rotation
  • Black paint

Features:

  • TB Series
  • Robust construction for longer life
  • High pressure shaft seal comes standard
  • Superior dynamic side load capacity (Up to 1100 lb. at the key)
  • Continuous oil flow across internal splines for longer life
  • DU and sintered copper/steel bushings
  • Smooth, extra low speed operation
  • Innovative design eliminates the need for a case drain
  • Designed and manufactured in Greeneville, TN USA

Markets:

  • Car Wash
  • Aerial
  • Agrictultural Machinery
  • Construction Equipment
  • Factory Automation
  • Material Handling Equipment
  • Oil & Gas
  • Food & Beverage

Machine and Device Applications:

  • Conveyors
  • Gear Boxes
  • Boom Rotate
  • Food Processing
  • Winches
  • Augers
  • Portable Irrigation Systems
  • Post Hole Diggers
  • Specialty Harvesters
  • Header Drives
  • Snow Removal
  • Salt and Sand Spreaders
  • Oil and Gas Blender Trucks
  • Car Washes
  • Bulk Feed Truck
