A pressure relief and regulating valve. Flow rate tolerance depends on the intended use of the valve, please see the specifications. It handles a maximum pressure of 3000 PSI.
Technical Specifications
Max PSI: 3000
Max GPM: 10.8
Inlet Port: 3/8 inch
Product Description

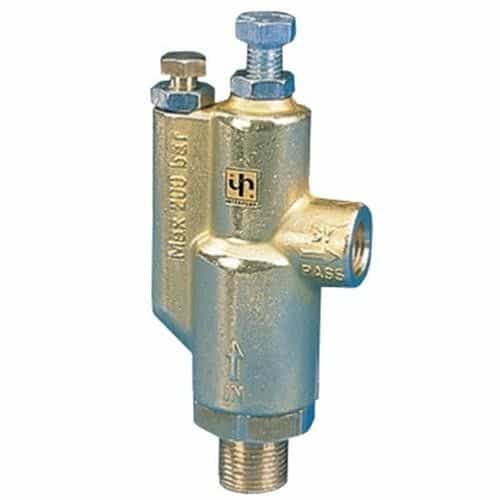

3000 PSI Relief Valve
The ZKSR is a valve that can be used as both a pressure relief and regulating valve. When used a a pressure relief and regulating valve it handles a flow rate of 1.6 - 5.5 GPM and when used a a pressure relief valve only, it is compatible with flow rates up to 10.8 GPM. It is constructed with brass and stainless steel for corrosion resistance. The valve is engineered to withstand a maximum pressure of 3000 PSI.
Specifications:- Manufacturer: General Pump
- Product Number ZKSR
- Volume Pressure Relief Valve: 1.3 - 10.8 GPM
- Regulating Valve: 1.6 - 5.5 GPM
- Maximum Pressure 3,000 PSI
- Port Size Inlet 3/8” BSP-M
- Bypass 1/4” BSP-F
- Weight 1.5 lb.
- Materials Brass, Stainless Steel
