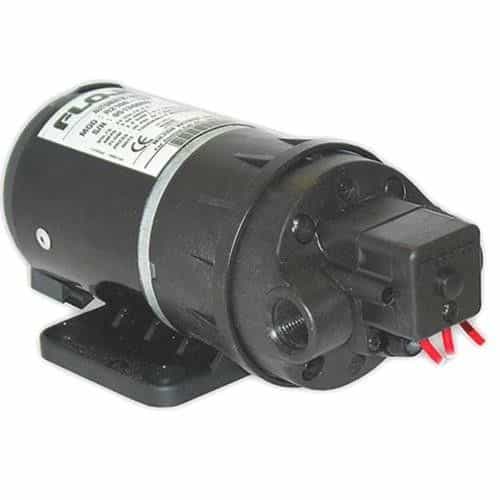

Flojet D21X005A Duplex Diaphragm Sprayer Pump - 60 PSI, 2.1 GPM, 12 VDC

Brand:
Mfr. Model #:
D21X005A
KR Part #:
FP21X005
Weight:
4.13 lbs
GTIN:
705474201044
In Stock
MSRP
$185.30
Now Only!
$140.39
This is a two-diaphragm pump that withstands dry runs. Requires 12 VDC power connections. Handles pressure up to 60 PSI.
Prep 65

Prop 65




Technical Specifications

Max PSI: 60
Max GPM: 2.1
Voltage DC: 12
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Max Temperature: 140 degrees F

Product Description

Electric Pump

The Flojet D21X005A is a double diaphragm sprayer pump includes an integrated 12 VDC electric motor. Pump body is made from polypropylene for corrosion and chemical resistance. Ability to self-prime and handles waterlike and viscous liquids. Incorporates a Viton check valve and Santoprene diaphragm.

Specifications:

  • Item: Electric Sprayer Pump
  • Inlet/Outlet: 3/8 in FNPT
  • Housing Material - Pumps: Polypropylene
  • Max. Temp - Pumps: 140 Degrees F
  • Max. Flow: 2.1 GPM
  • Max. Pressure - Pumps: 60 PSI
  • Voltage - Pumps: 12V DC
  • Type: Diaphragm
  • Diaphragm Material: Santoprene(R)
  • Check Valve: Viton(R)
  • Pressure On: 40
  • Pressure Off: 60
  • Length (In.): 7.65 in
  • Width (In.): 3.24 in
  • Height (In.): 3.63 in
  • Prime in Feet: 8
  • GPM @ 0 PSI: 2.1
  • Motor Type: TENV
  • Self-Priming: Yes
  • Fuse Amps: 10 A
  • Pressure Switch: Operates on Demand
  • Diaphragm Design: Duplex Chamber

UPC:

  • GTIN: 705474201044

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).

Product Reviews

Frequently Asked Questions

Question:Will this pump work as the same as D21X005B model? - Sandra (09/10/2023)
Response:Hi Sandra, yes this is essentially the same pump. Same specifications and functionality altogether.
