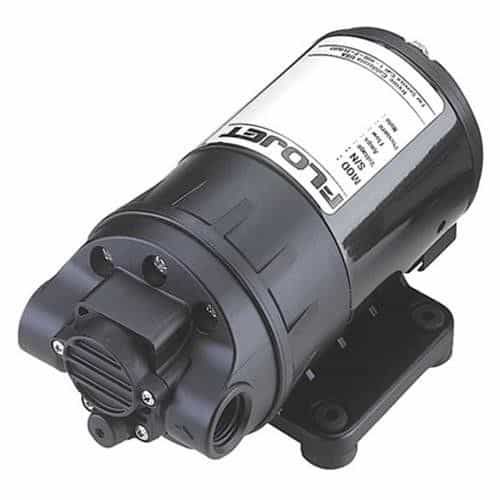

Flojet D31X015F Duplex Diaphragm Bypass Pump - 50 PSI Bypass, 2.0 GPM, 12 VDC

Mfr. Model #:
KR Part #:
4.31 lbs
Out of Stock - Pre-Order Now
Now Only!

This FloJet pump is a two-diaphragm pump that withstands dry runs. Requires 12 VDC power connections. Handles pressure up to 50 PSI.

Prep 65

Prop 65


Technical Specifications

Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Max PSI: 50
Max GPM: 2.0
Voltage DC: 12

Product Description

Dry Run Pump

The Flojet D31X015F is a double diaphragm pump includes an integrated 12 VDC electric motor. Pump body is made from nylon for chemical resistance. Self-primes up to 8 feet of vertical lift. Features the ability to run dry without damaging the critical components of the pump and features an internal bypass system protecting the pump from excessive pressures. Drive system utilizes heavy duty ball bearings.


  • Voltage: 12 VDC
  • GPM: 2.0 GPM
  • Max. Pressure: 50 PSI
  • Ports: 3/8" FNPT
  • Material: Nylon
  • Diaphragm: Buna
  • Check Valve: Buna
  • Motor: Electric
  • Weight: 4.31 lbs.


  • Self-priming up to 8 feet (2.4 m)
  • Can run dry without damage
  • Chemical resistant material
  • Internal bypass standard
  • Built-in back flow preventer
  • Heavy duty ball bearing drive system
  • UL, CSA and CE models available
