General Pump TP2526J34UIL Plunger Pump with Gas Engine Flange, Unloader and Injector, 2.6 GPM, 2500 PSI, Left Shaft

Mfr. Model #:
KR Part #:
11.50 lbs
Call For Availability
Now Only!

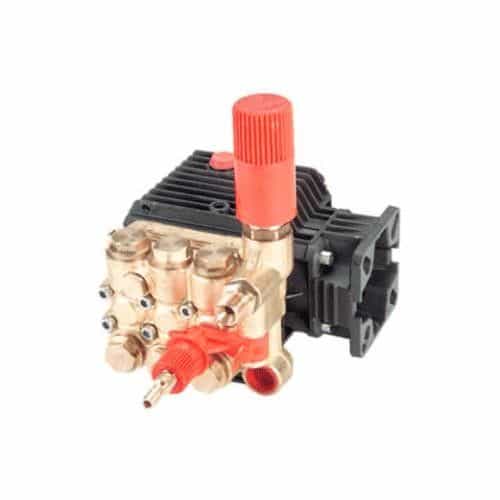

Compact design plunger pump for high-pressure cleaning applications. Features SAE J609 flange for direct coupling to a gasoline engine. Includes a built-in unloader for pressure regulation. Note: picture shows right shaft, but this is a left hand pump.

Technical Specifications

Bore: 15 millimeter
Crankcase Capacity: 11 ounce
Shaft Diameter: 3/4 inch
RPM: 3400
Max Temperature: 165 degrees F
Max PSI: 2500
Max GPM: 2.6

Product Description

Gas Engine Flanged Plunger Pump

The General Pump TP2526J24UIL Pump is part of the TP Series 51 line of plunger pumps. This general cleaning pump comes with a flange for gasoline engines (SAE J609), a built-in unloader, and an in-line injector. Use in applications requiring a pump with a 2.6 GPM maximum flow rate and maximum pressure of 2500 PSI. Features left-hand shaft for adaptation into unique spaces.

  • Maximum Volume: 2.6 GPM
  • Maximum Pressure: 2500 PSI
  • Maximum RPM: 3400 RPM
  • Inlet Port: 3/8"-19 BSP-F
  • Discharge Port: 1/4"-19 BSP-F
  • 11.0 ounce crankcase capacity
  • Bore: 15mm
  • Stroke: 6.6mm
  • 125 PSI maximum inlet pressure
  • 3/4" hollow shaft
  • Flooded maximum inlet vacuum
  • SAE J609 flanged for direct coupling to gas engines
  • Built-in TP unloader
  • Fixed downstream injector
  • Fully anodized crankcase
  • Oversized bearings
  • Sight glass for easier monitoring
  • Larger machined crankshaft - increases load potential and reduces fatigue
  • Strongest manifold on the market
  • Improved low and high pressure seals
  • Reinforced valve cap area
  • Positive aligning valve cap
  • Support ridges and support ribs for piston guides
  • Use GP Series 100 oil for best performance

Product Reviews

0  Customer Review(s)
5 Star
0  (0%)
4 Star
0  (0%)
3 Star
0  (0%)
2 Star
0  (0%)
1 Star
0  (0%)

CID: -1 QueryString:general-pump-tp2526j34uil-plunger-pump-with-gas-engine-flange-unloader-and-injector-2-6-gpm-2500-psi-left-shaft| Runtime:falsep-33378.aspx/p-33378.aspxen-US1 AM1FalseUSDTrueen-USFalse0en-US333781FalseFalseproduct| LastCustomerReview:
Frequently Asked Questions
Question:Repair kits for this pump - Teofilo (11/06/2020)
Response:Valve Kit-GPK123, Seal Kit- GPK97
