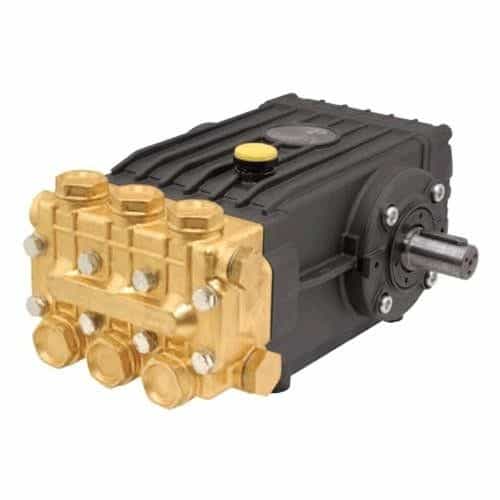

General Pump TS2021GR Nickel Plated Brass Triplex Plunger Pump with 1 Inch Gearbox - 4.5 GPM, 3500 PSI, 1125 RPM
Brand:
Mfr. Model #:
TS2021GR
KR Part #:
GPTS2021GR
Weight:
40.00 lbs
GTIN:
682491142256
This pump includes a 1" gear box and a nickel plated forged brass manifold. Its parts are constructed for durability. Produces a maximum pressure of 4.5 GPM.
Technical Specifications
Max PSI: 3500
Max GPM: 4.5
RPM: 1125
Inlet Port: 1/2 inch
Max Temperature: 165 degrees F
Bore: 20 millimeter
Stroke: 16 millimeter
Shaft Diameter: 24 millimeter
Crankcase Capacity: 40.6 ounce
Product Description
4.5 GPM - 47 Series Pump w/ 1" Gearbox
The General Pump TS2021GR is T Series 47 S triplex plunger pump equipped with a 1" gearbox. Nickel plated forged brass manifold offers increased corrosion resistance when compared to manifolds with out the plating. This pump delivers a maximum flow rate of 4.5 GPM and endures a maximum pressure of 3500 PSI. Parts are designed and constructed with materials to maximize their lifespan for a more durable pump.Specifications:
- Includes: 1" Gearbox
- Maximum Volume (GPM): 4.5
- Maximum Discharge Pressure (PSI): 3500
- Maximum Pump Speed (RPM): 1125
- Maximum Inlet Pressure: 125 PSI
- Maximum Inlet Vacuum: 9 ft. water (7.9 in. Hg)
- Plunger Bore: .787 in. / 20 mm
- Plunger Stroke: .630 in. / 16 mm
- Crankcase Oil Capacity: 40.6 oz.
- Maximum Fluid Temperature: 165 Degrees F
- Inlet Port Thread: 1/2-14 BSPP-F
- Discharge Port Thread: 3/8-19 BSPP-F
- Shaft Diameter: .945 in. / 24 mm
- Weight: 32 lbs.
- Dimensions: 12.2” x 9.2” x 6.9”
- GTIN: 682491142256
- The preferred pump frame in the pressure cleaning industry
- Forged, nickel-plated, brass manifold (TS2021)
- Large-capacity, die-cast, anodized aluminum oil-bath crankcase
- Over-sized connecting rods for maximum life
- Heavy-duty tapered roller bearing
- Solid ceramic plungers with continuously lubricated packings
- Unitized stainless steel inlet and discharge valves
