FSG 20/40 Pressure Switch

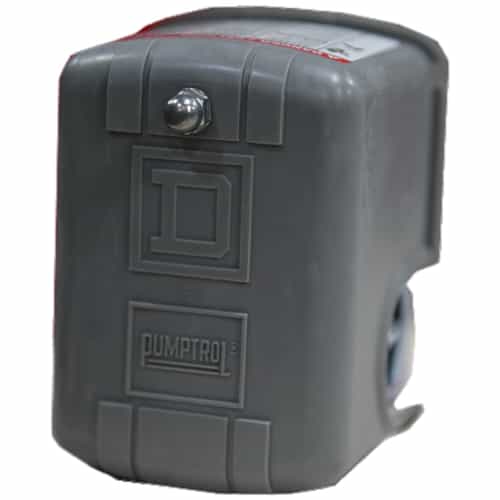

The Square D FSG220 is designed with a Pumptrol pressure switch that is used to control the pressure of electrically-driven water pumps for jet, submersible and reciprocating system applications. Turns on at 20 PSI and off at 40 PSI. This sensor handles fresh and sea water that does not exceed 158 degrees Fahrenheit. It is made with 2 NC Snap Action contacts. The components which have contact with fluid are made of Nitrile, Zinc plated steel, and Nylon 6/6.

Specifications:

• 20 PSI - ON, 40 PSI - OFF
• Range of Product: OsiSense XM
• Pressure Sensor Type: Electromechanical pressure sensor
• Pressure Sensor Name: FSG
• GTIN: 785901066187
• Fluid Connection Type: G 1/4 (Female ISO 228
• Controlled Fluid:
  • Fresh Water 32…158 °F (0…70 °C)
  • Sea Water: 32…158 °F (0…70 °C)
• Cable Entry: 2 cable entries with grommet
• Contacts Type and Composition: 2 NC Snap Action

Product Specific Application:

• Pressure switch type of operation: Regulation Between 2 Thresholds
• Line Rated Current: 10 A 250 V AC EN 60730-1
• Electrical Connection: Screw-clamp terminals 1 x 1...2 x 2 mm²
• Short-Circuit Protection: 20 A cartridge fuse gG
• Scale Type: Adjustable differential
• Setting: Internal
• Local Display: Without
• Electrical Circuit Type: Power circuit

Complementary:

• Materials in contact with fluid:
• Nitrile
• Zinc plated steel
• Nylon 6/6
• Enclosure Material: PS
• Operating Position: Any position
• Motor Power kW:
  • 0.75 kW/1 hp at 110 V AC, 1 phase
  • 1.1 kW/1.5 hp at 110 V AC, 3 phase
  • 1.5 kW/2 hp at 230 V AC, 1 phase
  • 1.5 kW/2 hp at 400 V AC, 1 phase
  • 2.2 kW/3 hp at 230 V AC, 3 phase
  • 2.2 kW/3 hp at 400 V AC, 3 phase
• Adjustable Range of Switching Point on Falling Pressure: 4.35…49.31 psi (0.3…3.4 bar)
• Adjustable Range of Switching Point on Rising Pressure: 20.31…66.72 psi (1.4…4.6 bar)
• Possible Differential Minimum at Low Setting: 14.50 psi (1 bar)
• Possible Differential Minimum at High Setting: 17.40 psi (1.2 bar)
• Possible Differential Maximum at Low Setting: 30.46 psi (2.1 bar)
• Possible Differential Maximum at High Setting: 33.36 psi (2.3 bar)
• Maximum Permissible Accidental Pressure: 116.03 psi (8 bar)
• Maximum Permissible Pressure - Per Cycle: 83.40 psi (5.75 bar)
• Destruction Pressure: 290.08 psi (20 bar)
• Pressure Actuator: Diaphragm
• Electrical Durability: 100000 cycles 10 cyc/mn
• Mechanical Durability: 1000000 cycles
• Terminal Block Type: 4 terminals
• Possible Differential Minimum at Middle Setting: 15.95 psi (1.1 bar)
• Possible Differential Maximum at Middle Setting: 31.91 psi (2.2 bar)
• Maximum Operating Rate: 10 cyc/mn
• [Ui] Rated Insulation Voltage: 500 V EN/IEC 60947-1
• [Uimp] Rated Impulse Withstand Voltage: 6 kV EN/IEC 60947-1
• Net Weight: 0.75 lb(US) (0.34 kg)
• Repeat Accuracy: 2 %
• Terminals Description ISO n°1
  • (1-2)NC
  • (3-4)NC
• Depth: 4.02 in (102 mm)
• Height: 3.78 in (96 mm)
• Width: 2.83 in (72 mm)

Environment:

• Standards:
• EN/IEC 60730
• CE
• Ambient Air Temperature for Operation: 32…113 °F (0…45 °C)
• Ambient Air Temperature for Storage: -22…176 °F (-30…80 °C)
• Protective Treatment: TC
• Electrical Shock Protection Class: Class I IEC 536
• IP degree of protection: IP20 conforming to EN/IEC 60529
