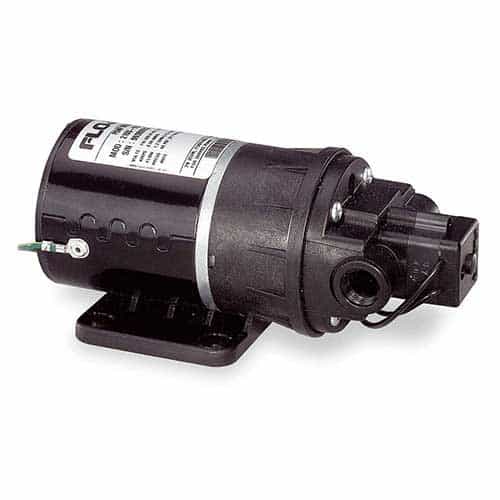

Flojet 115VAC Electric Diaphragm Pump - 1.6 GPM, 3/8 in.

Mfr. Model #:
KR Part #:
4.10 lbs
Out of Stock - Pre-Order Now
Now Only!
Polypropylene housing pump with Viton check valves and Santoprene diaphragms. 115 volt AC, 1.6 GPM, 3/8" FNPT ports.

Technical Specifications

Inlet Port: 3/8 inch
Max GPM: 1.6
Max Temperature: 140 degrees F
Max PSI: 60
Voltage AC: 115

Product Description

1.6 GPM Diaphragm Sprayer Pump

This Flojet diaphragm pump is powered by electric and made with polypropylene. It is most commonly used for spraying purposes at car washes, farms, and in industrial environments.

This diaphragm pump has polypropylene housing, Santoprene diaphragms, and Viton check valves make this pump very chemical resistant. It has a flow rate of 1.6 GPM, 3/8" x 3/8" inlet and outlet ports, and 60 PSI maximum pressure.

Dimensions: 7.65" L x 3.24" W x 3.63" H


  • Flow Rate: 1.6 GPM
  • Inlet/Outlet: 3/8" FNPT
  • Housing Material: Polypropylene
  • Maximum Temperature: 140° Fahrenheit
  • Maximum Pressure: 60 PSI
  • Voltage: 115 VAC
  • Type: Diaphragm
  • Check Valve Material: Viton
  • Motor Type: TENV
  • Pressure Switch: Operates on demand
  • Self priming to 8 feet
  • Duplex chamber diaphragm design
