Sta-Rite HMSF-1FL HMS Series Multi-Stage Centrifugal Pump - 1.5HP 115V

Brand:
Mfr. Model #:
HMSF-1FL
KR Part #:
HMSF-1FL
Weight:
81.70 lbs
GTIN:
022315149052
Call For Availability
MSRP
$3,294.00
Now Only!
$1,584.46
HMS Series 1.5 horsepower pump is great for a wide range of applications in deep or shallow wells. Max capacity 15.9 GPM.
Freight Only

Freight Only




Technical Specifications

Horsepower: 1 1/2
Voltage AC: 115/230
Max Temperature: 140 degrees F
Max PSI: 50
Max GPM: 15.9
Inlet Port: 1 1/4 inch

Product Description

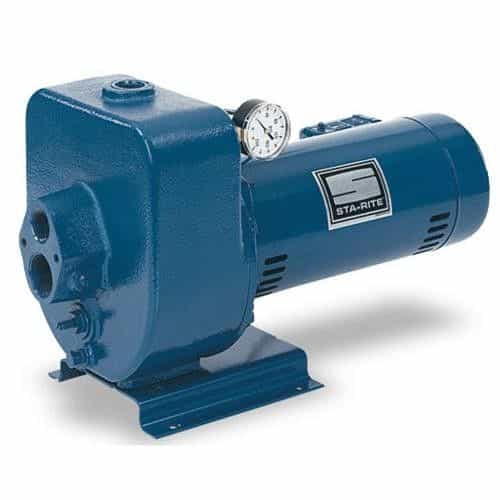

Horizontal Cast Iron Jet Pump

This HMSF pump is constructed with close-grained cast iron as a rugged, one-piece unit, specially treated to resist corrosion. A drain port provided for easy winterizing. Its automatic pressure regulator is faster-acting and quieter with a design that eliminates "hunting" for correct drive pressure. New improved stem and guide are precisely molded to assure efficient, trouble-free performance on all deep wells. The precision-molded polycarbonate impeller has perfect balance for highest performance and efficiency. Superior insulation materials protect against excessive moisture and contaminants to ensure prolonged motor life.

Specifications:
  • Cast iron body
  • Polypropylene impeller
  • Max capacity: 15.9 GPM
  • Max shut off pressure: 68 PSI
  • Pressure switch setting: 30-50 PSI
  • Suction size: 1-1/4" NPT
  • Drive size: 1"
  • Discharge size: 1"
  • Max temp: 140 degrees F
  • Voltage: 115v / 230v 60 Hz, 1-phase
