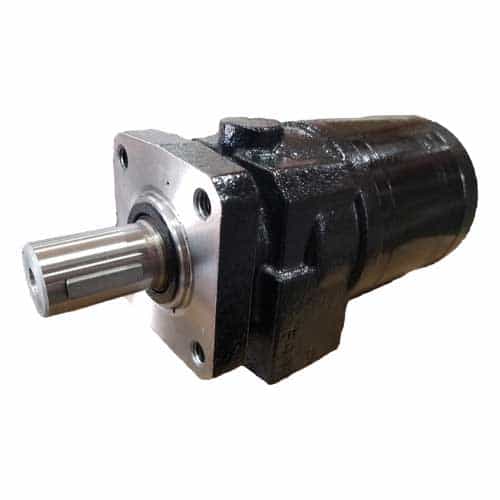

Parker TB0195FP100AAAC TB Series 16.1 HP Hydraulic Torqmotor - 195 CC Displacement

Brand:
Mfr. Model #:
TB0195FP100AAAC
KR Part #:
PM1115
Weight:
16.00 lbs
In Stock
MSRP
$636.84
Now Only!
$408.21

Hydraulic style motor for light duty use where low speed and high torque is required. Excellent option for automatic car washes and other harsh environments where motors are frequently exposed to water. 287 RPM max speed, 16.1 horsepower.




Technical Specifications

Max PSI: 2100
Max GPM: 15.0
Horsepower: 16.1
RPM: 287
Inlet Port: 1/2 inch
Shaft Diameter: 1 inch

Product Description

195 Cubic Centimeter High Torque Motor

The Parker TB0195FP100AAAC hydraulic motor is part of the TB Series. This low speed, high-torque (LSHT) motor is a rugged orbital motor built to have a long life and superior side load capacity. High-volume fluid flow continually washes across the splines and seals to extend their life. Roller vanes and sealed commutation assure high volumetric efficiency and smooth low-speed operation.

This economical light duty motor is an excellent option for automatic car washes and other harsh environments where motors are frequently exposed to water. Ideal for use with machines like conveyors, winches, gear boxes, and augers.

Specifications:

  • 1800 PSI continuous duty maximum pressure
  • 2100 PSI intermittent duty maximum pressure
  • 2750 PSI maximum supply pressure
  • 287 RPM maximum speed
  • 3011 pounds-inch maximum torque (continuous duty)
  • 3537 pounds-inch maximum torque (intermittent duty)
  • 2388 pounds-inch minimum starting torque (continuous duty)
  • 2872 pounds-inch minimum starting torque (intermittent duty)
  • 195 cubic centimeter displacement
  • 12 GPM maximum oil flow (continuous duty)
  • 15 GPM maximum oil flow (intermittent duty)
  • 16.1 horsepower
  • 4 bolt with 3/8-16 UNC mounting
  • 1/2-14 NPTF ports
  • 1" keyed shaft
  • Standard rotation
  • Double painted

Features:

  • TB Series
  • Robust construction for longer life
  • High pressure shaft seal comes standard
  • Superior dynamic side load capacity (Up to 1100 lb. at the key)
  • Continuous oil flow across internal splines for longer life
  • DU and sintered copper/steel bushings
  • Smooth, extra low speed operation
  • Innovative design eliminates the need for a case drain
  • Designed and manufactured in Greeneville, TN USA

Markets:

  • Car Wash
  • Aerial
  • Agricultural Machinery
  • Construction Equipment
  • Factory Automation
  • Material Handling Equipment
  • Oil & Gas
  • Food & Beverage

Machine and Device Applications:

  • Conveyors
  • Gear Boxes
  • Boom Rotate
  • Food Processing
  • Winches
  • Augers
  • Portable Irrigation Systems
  • Post Hole Diggers
  • Specialty Harvesters
  • Header Drives
  • Snow Removal
  • Salt and Sand Spreaders
  • Oil and Gas Blender Trucks
  • Car Washes
  • Bulk Feed Trucks
