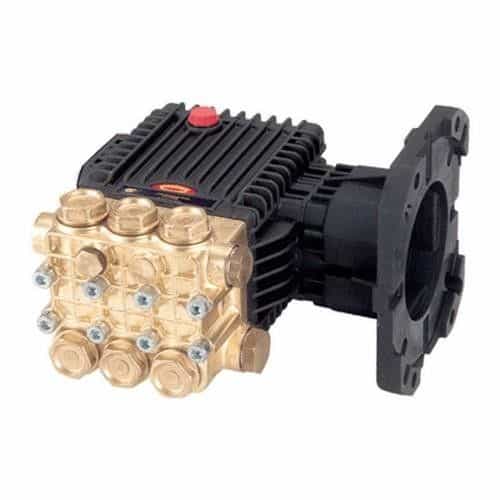

General Pump TX1508G8 TX Series 63 Hollow Shaft 3 GPM, 3000 PSI
Brand:
Mfr. Model #:
TX1508G8
KR Part #:
GPTX1508G8
Weight:
18.00 lbs
GTIN:
682491113843
General Pump hollow shaft pump flanged for direct couple to gasoline engines (SAE J609). UPC: 682491113843
Technical Specifications
Max GPM: 3
Max PSI: 3000
RPM: 3400
Inlet Port: 1/2 inch
Max Temperature: 165 degrees F
Bore: 15 millimeter
Stroke: 8 millimeter
Shaft Diameter: 25.4 millimeter
Horsepower: 9.2
Crankcase Capacity: 14 ounce
Product Description
TX Series 63, Hollow Shaft
High-performance and reliable triplex plunger pump with 1" hollow shaft. Boasts high power performance and flanged mounting for direct couple to gasoline engines (SAE J609). Industry-grade construction helps prolong service life to save you time and money.
Pump Dimensions: 8.4" x 8.4" x 6.5"
Shaft Diameter: 1" / 25.4 mm
- Flanged for direct couple to gasoline engine (SAE J609)
- Set screw for key way
- Oversized bearings and new generation seal system for prolonged service life
- Forged brass manifold
