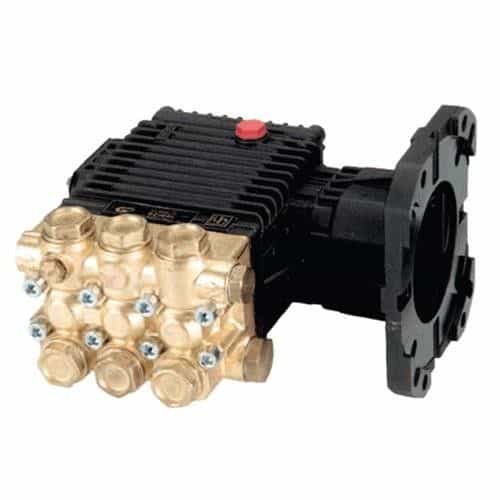

General Pump EZ3035G Gasoline Mounting Flanged Triplex Plunger Pump - 3.5 GPM, 3000 PSI, 3400 RPM
Brand:
Mfr. Model #:
EZ3035G
KR Part #:
GPEZ3035G
Weight:
19.10 lbs
GTIN:
682491013327
Availability:
1
Created with solid ceramic plungers. Stainless-steel inlet and outlets. Oil-bath crankcase crafted with anodized aluminum. Note: Includes SAE J609 gasoline mounting flange for mounting up to 13 HP engines.
Technical Specifications
Bore: 15 millimeter
Crankcase Capacity: 14 ounce
Max Temperature: 165 degrees F
RPM: 3400
Max PSI: 3000
Shaft Diameter: 1 inch
Stroke: 8.5 millimeter
Max GPM: 3.5
Inlet Port: 1/2 inch
Horsepower: 10.8
Product Description
EZ Series 44 G
Pressure cleaning pumps are designed with solid ceramic plungers. Pump has an SAE J609 gasoline mounting flange installed onto the shaft for mounting up to 13 HP engines. Incorporates unitized stainless-steel inlet and discharge valves. Employs a die-cast anodized aluminum oil-bath crankcase.
Specifications:
- GPM: 3.5
- PSI: 3000
- RPM: 3400
- Bore: .591 in./15 mm
- Stroke: .335 in./8.5 mm
- HP: 10.8 GHP
- Maximum Inlet Pressure: 125 PSI
- Minimum Inlet Pressure: 3 Ft. Water / 2.6 in. Hg.
- Plunger Bore (in / mm): .591 in / 15 mm
- Plunger Stroke: .335 in.
- Oil Capacity: 14.0 oz
- Maximum Fluid Temperature: 165°F
- Inlet Port Thread: 1/2" - 14 BSP-F
- Discharge Port Thread: 3/8" - 19 BSP-F
- Shaft Diameter: 1.0 in. / 25.4 mm
- Weight: 19.1 lbs
- Dimensions: 8.8" x 9.7" x 6.5
